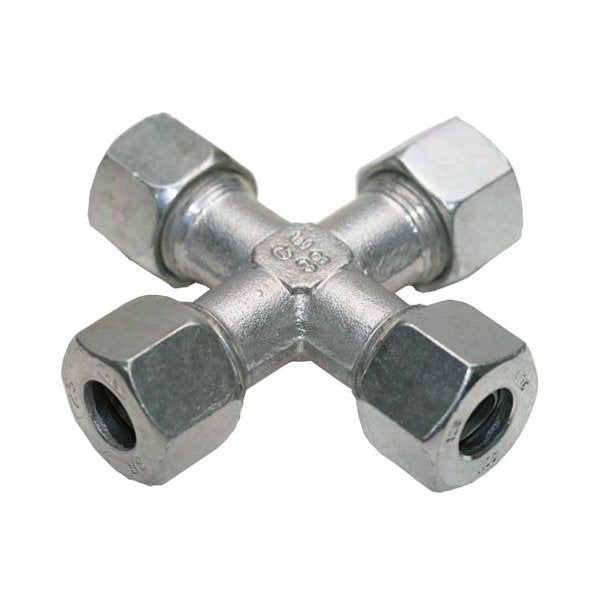

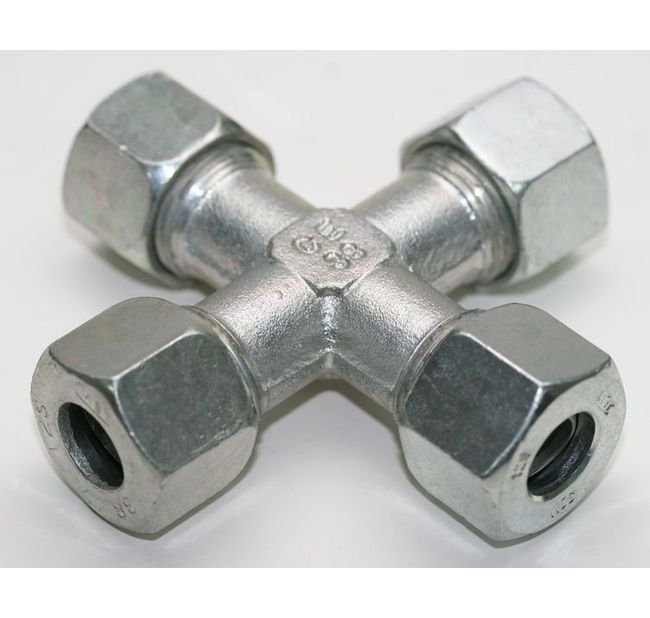

Stainless Steel Equal Cross B3 Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Equal Cross B3 Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-151462
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-151462

High-quality Stainless Steel Equal Cross B3 Ring for heavy-duty applications. DIN 2353 compliant. Reliable and durable.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

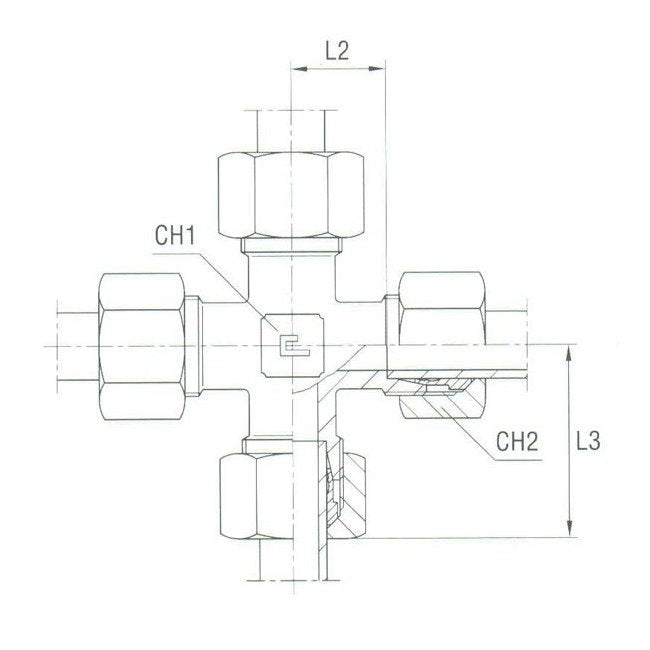

The Stainless Steel Equal Cross B3 Ring is a heavy-duty fitting designed for precise compression in demanding applications. Crafted from durable stainless steel, this fitting ensures reliable performance. With a tube diameter of 8.0 mm and a nominal operating pressure of 630 bar, it meets stringent DIN 2353 standards. The compact design with precise measurements of L2: 17.0 mm, L3: 32.0 mm, CH1: 14 mm, and CH2: 19.0 mm makes installation and maintenance efficient.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

19.0 mm

Specifications L2

17.0 mm

Specifications L3

32.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm
