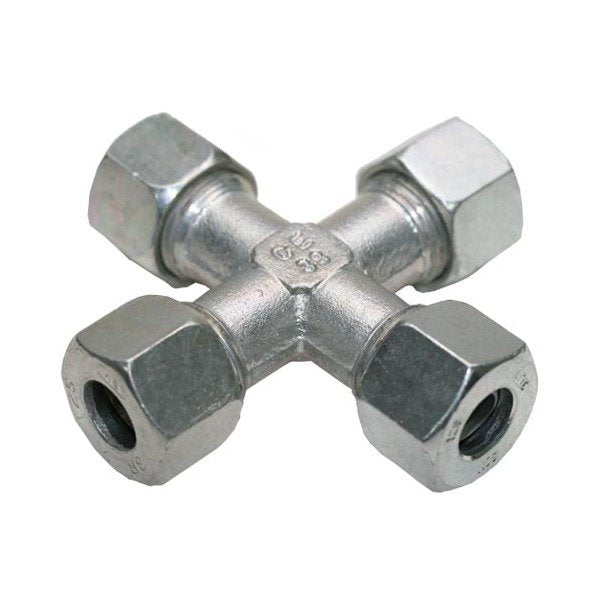

Stainless Steel Equal Cross Compression Fitting - 18mm Tube Diameter

Name: Stainless Steel Equal Cross Compression Fitting - 18mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-cad087
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-cad087

Precision stainless steel equal cross compression fitting for 18mm tubes, DIN 2353 compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Equal Cross - Equipped B3 Ring is a high-quality compression fitting designed for light-duty applications. Crafted from durable stainless steel, this fitting ensures reliable performance under pressure. With a nominal operating pressure of 315 bar, it meets DIN 2353 standards, providing peace of mind in various industrial settings. Its precise dimensions, including L2: 23.5mm and L3: 40mm, make it a versatile choice for piping systems requiring equal branch connections.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

32 mm

Specifications L2

23.5 mm

Specifications L3

40 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm
