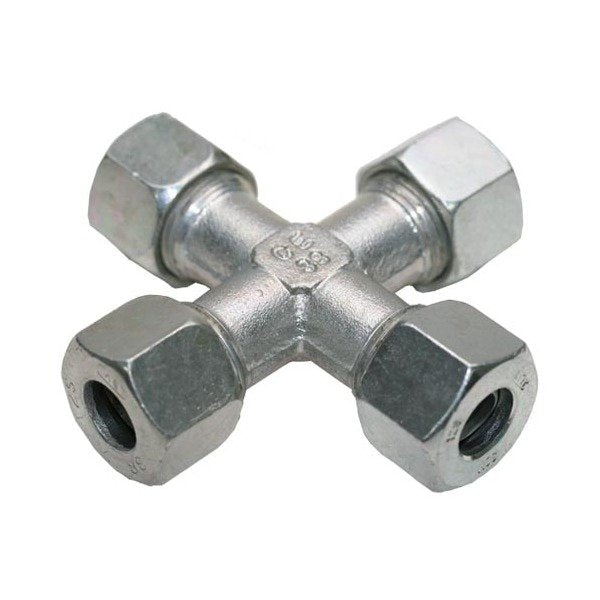

Stainless Steel Equal Cross - DIN 2353 Compression Fitting
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
SKU:FIT-27d68e
High-quality Stainless Steel Equal Cross - DIN 2353 Compression Fitting, perfect for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Cross - DIN 2353 Compression Fitting is designed for extra light duty applications with a tube diameter of 4.0mm and a nominal operating pressure of 100 bar. Made of high-quality stainless steel, this fitting ensures durability and reliability. With dimensions L2 of 11.0mm and L3 of 21.0mm, it offers precise fittings for various plumbing systems. Featuring compliance with DIN 2353 standards, this cross ensures a secure and leak-free connection, making it ideal for industrial and institutional usage.
Product Specifications

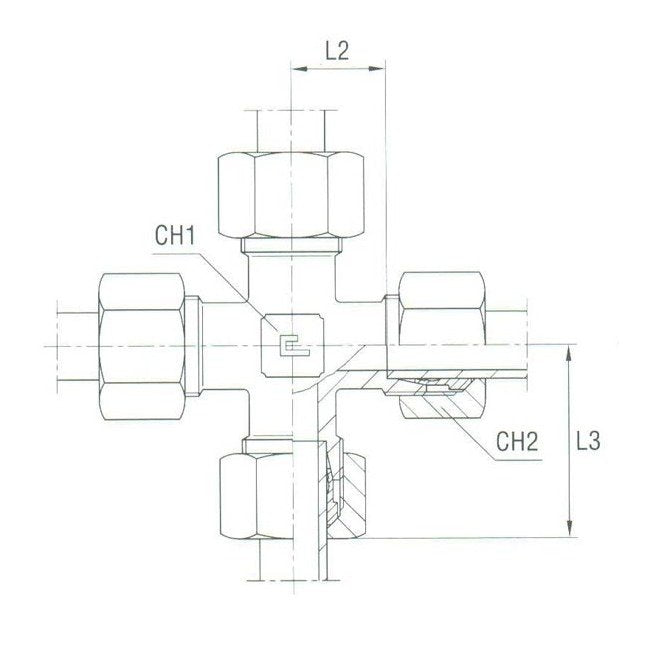

Specifications Ch1
9 mm
Specifications Ch2
10 mm
Specifications L2
11.0 mm
Specifications L3
21.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
4.0 mm
