Stainless Steel Equal Cross - DIN 2353 Compression Fitting
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
SKU:FIT-babbe6
High-quality Stainless Steel Equal Cross for industrial applications, DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Cross - DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

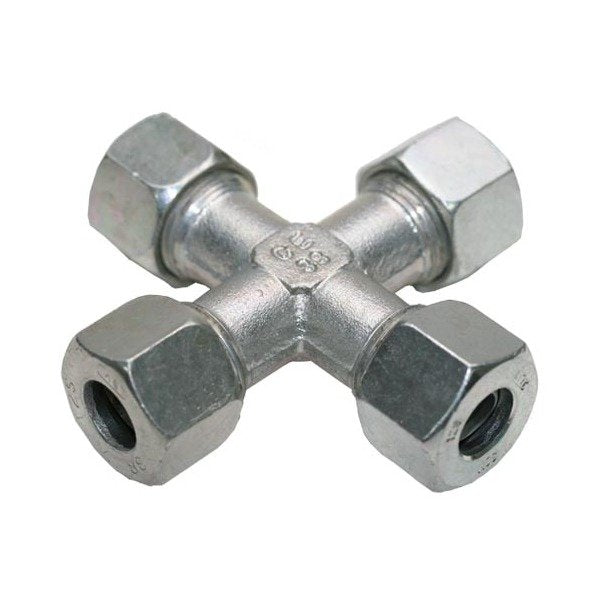

The Stainless Steel Equal Cross - DIN 2353 Compression Fitting is designed for light-duty industrial applications. Crafted from high-quality stainless steel, it ensures durability and resistance to corrosion. With a tube diameter of 22mm and a nominal operating pressure of 160 bar, this fitting is ideal for diverse hydraulic systems. Meeting DIN 2353 standards, it guarantees reliability and performance, making it a preferred choice for institutions seeking precision engineering solutions.

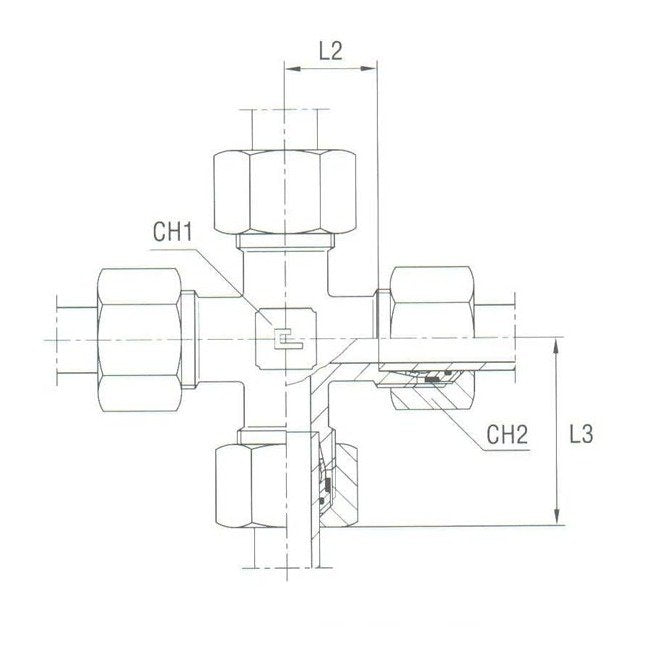

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
36 mm
Specifications L2
27.5 mm
Specifications L3
44.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
