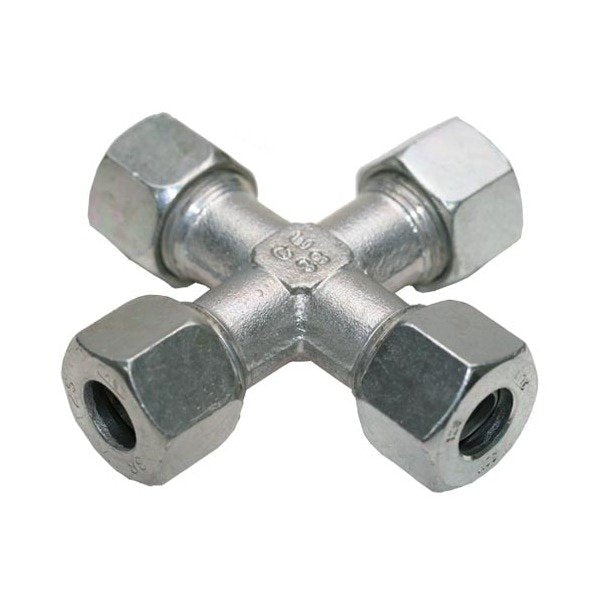

Stainless Steel Equal Cross Fitting - 6.0 mm Tube
Stainless Steel Equal Cross Fitting - 6.0 mm Tube
SKU:FIT-216a83
Reliable Stainless Steel Equal Cross Fitting for 6.0mm tube, DIN 2353 compliant, ideal for industrial use
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Cross Fitting - 6.0 mm Tube
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Cross Fitting - 6.0 mm Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

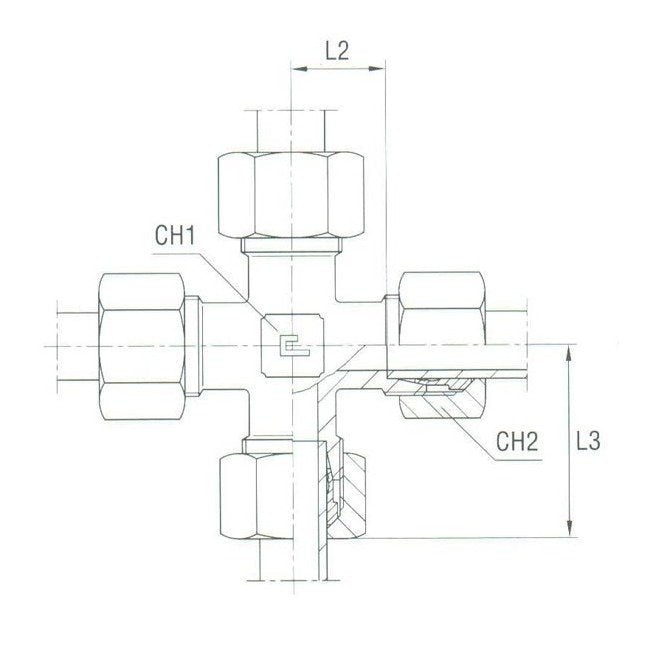

The Stainless Steel Equal Cross - Equipped B3 Ring offers reliable performance in light-duty applications with a tube diameter of 6.0 mm. Meeting DIN 2353 standards, this fitting can sustain a nominal operating pressure of 315 bar. With precise dimensions of L2: 12.0 mm and L3: 27.0 mm, it ensures secure connections with CH1: 12 mm and CH2: 14 mm dimensions. Built to last, this fitting is ideal for various industrial applications.
Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
12.0 mm
Specifications L3
27.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
