Stainless Steel Equal Cross Fitting - 6.0mm DIN 2353 Compression
Stainless Steel Equal Cross Fitting - 6.0mm DIN 2353 Compression
SKU:FIT-853b6b
High-performance Stainless Steel Equal Cross Fitting for industrial tube connections, DIN 2353 compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Cross Fitting - 6.0mm DIN 2353 Compression
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Cross Fitting - 6.0mm DIN 2353 Compression
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Cross Fitting is designed for precise tube connections, featuring a tube diameter of 6.0mm and a Nominal Operating Pressure of 100 bar. With a compact design and adherence to DIN 2353 standards, this fitting ensures durability and reliability in various industrial applications. Its stainless steel construction guarantees corrosion resistance and long-term performance, making it an ideal choice for demanding environments.

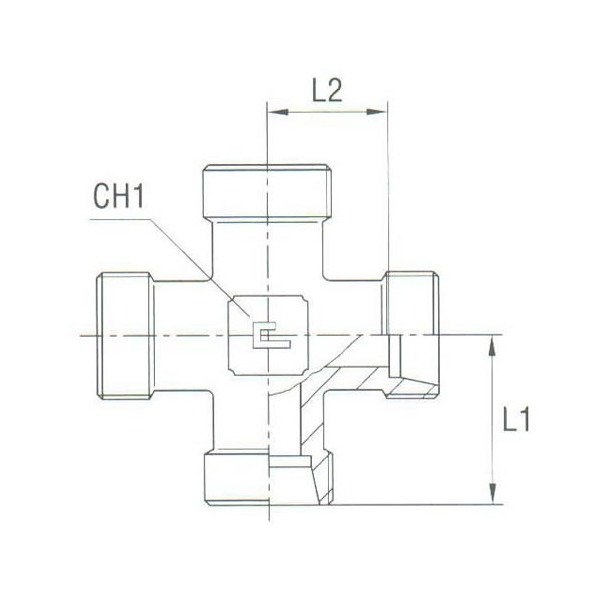

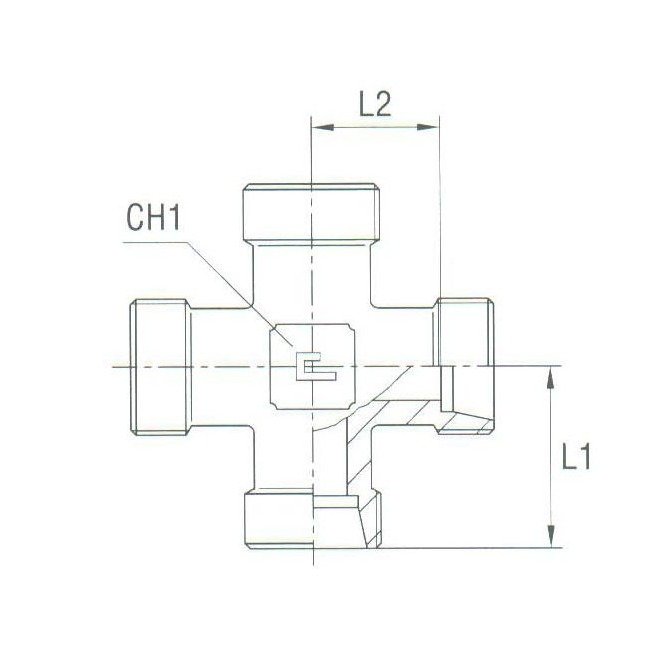

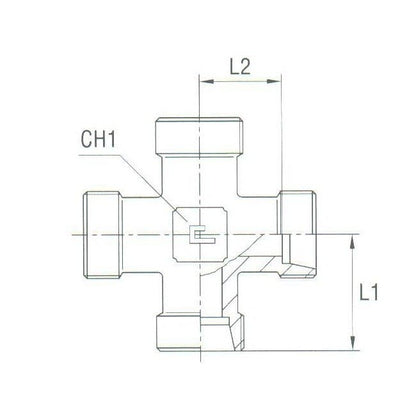

Product Specifications
Specifications Ch1
9 mm
Specifications L1
15 mm
Specifications L2
9.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
