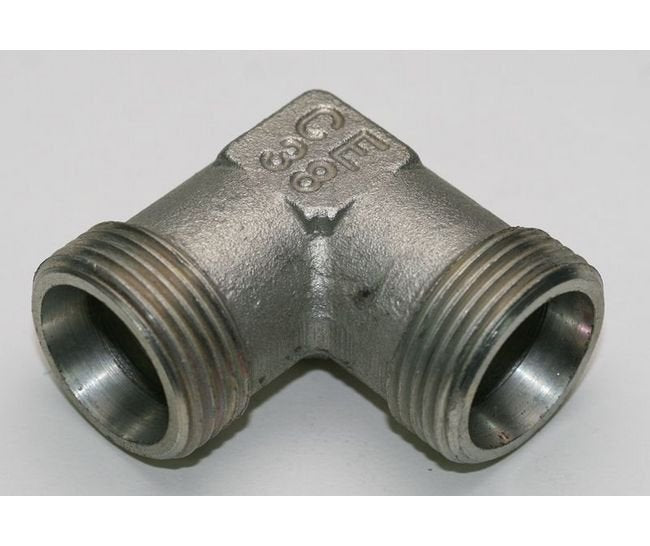

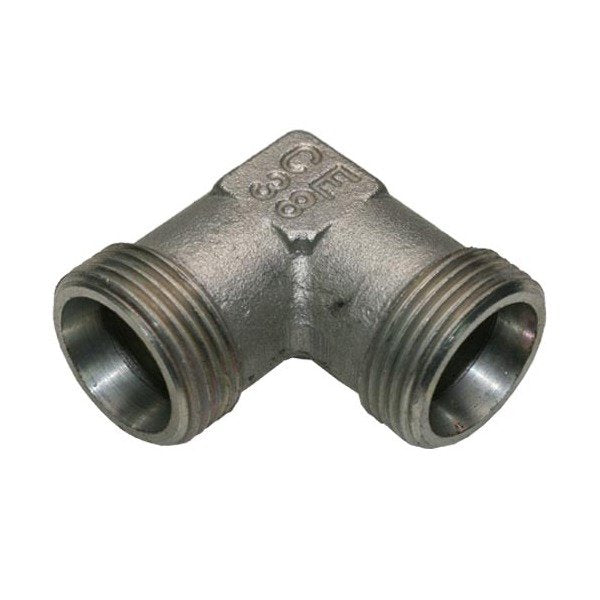

Stainless Steel Equal Elbow - 12.0mm Tube, DIN 2353 Compression Fitting
Stainless Steel Equal Elbow - 12.0mm Tube, DIN 2353 Compression Fitting
SKU:FIT-256acd
Durable Stainless Steel Equal Elbow for 12.0mm tubes, DIN 2353 compliant, ideal for light duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow - 12.0mm Tube, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow - 12.0mm Tube, DIN 2353 Compression Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Elbow offers a durable solution for light duty applications. Made of high-quality stainless steel, with a tube diameter of 12.0 mm, it operates at a nominal pressure of 315 bar. Compliant with DIN 2353 standards, this fitting ensures reliable performance and longevity in industrial settings.
Product Specifications

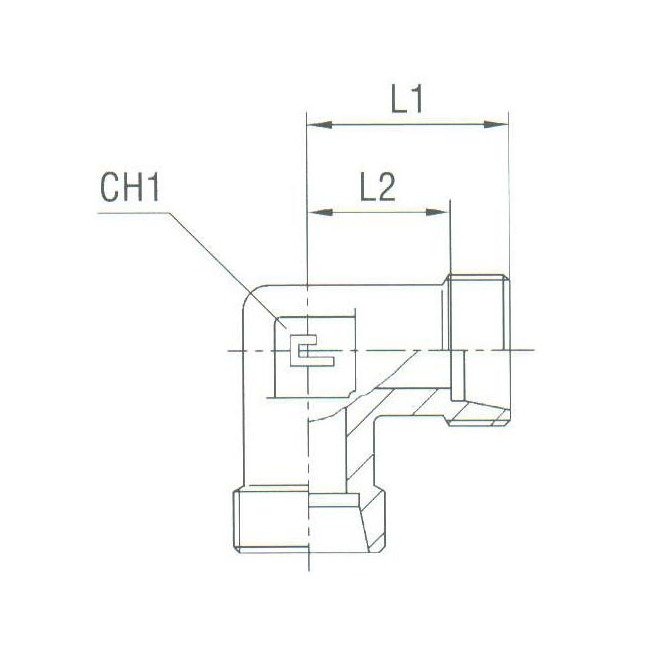

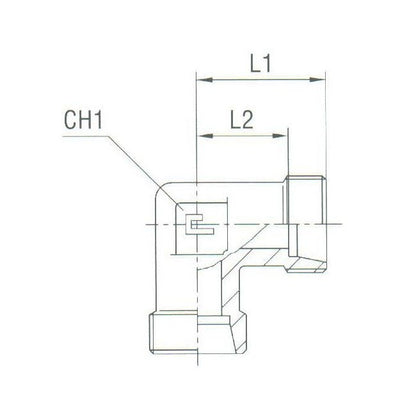

Specifications Ch1
17.0 mm
Specifications L1
24.0 mm
Specifications L2
17.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
