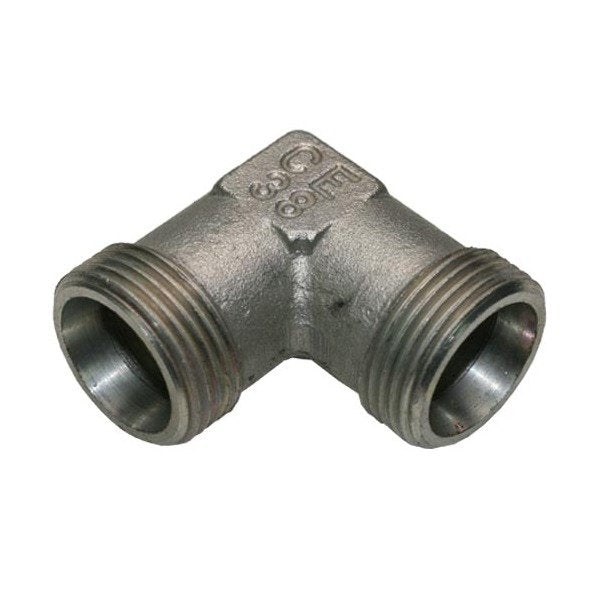

Stainless Steel Equal Elbow Compression Fitting
Stainless Steel Equal Elbow Compression Fitting
SKU:FIT-25e905
High-pressure, heavy-duty Stainless Steel Equal Elbow Compression Fitting meeting DIN 2353 standards for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow Compression Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow Compression Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Elbow Compression Fitting is designed for heavy-duty applications, featuring a tube diameter of 14.0 mm and a nominal operating pressure of 630 bar. Crafted to meet DIN 2353 standards, this fitting ensures reliability and durability. With precise dimensions of L1: 30.0 mm, L2: 22 mm, and CH1: 19.0 mm, it offers superior performance in demanding environments.
Product Specifications
Specifications Ch1
19.0 mm
Specifications L1
30.0 mm
Specifications L2
22 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
