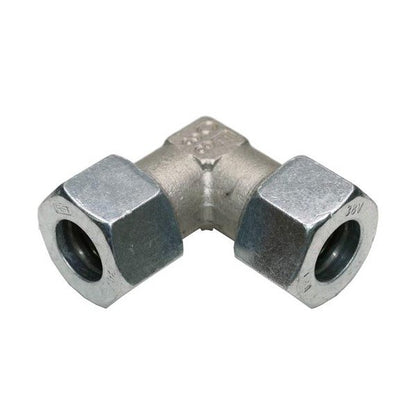

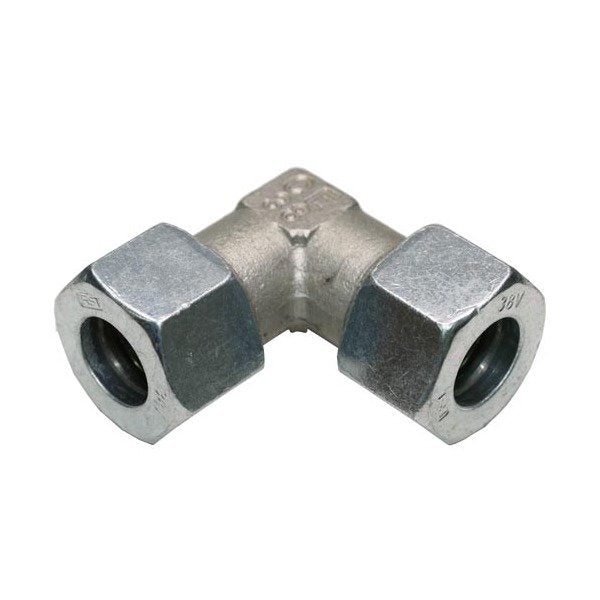

Stainless Steel Equal Elbow - DIN 2353 Compression Fitting
Stainless Steel Equal Elbow - DIN 2353 Compression Fitting
SKU:FIT-cee3fd
Durable Stainless Steel Equal Elbow for reliable hydraulic connections. DIN 2353 compliant. Ideal for light-duty applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Elbow with Equipped B3 Ring is designed for light-duty applications with a tube diameter of 10.0mm and a nominal operating pressure of 315 bar. It features precise dimensions - L2: 15mm, L3: 30.0mm, CH1: 14mm, CH2: 19.0mm - meeting DIN 2353 standards. Crafted for durability and performance, this fitting ensures reliable connections and efficient operations in various hydraulic systems.
Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
19.0 mm
Specifications L2
15 mm
Specifications L3
30.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
