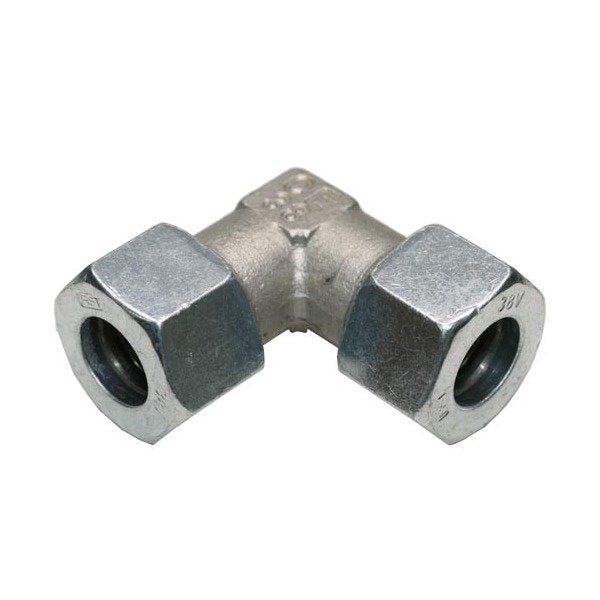

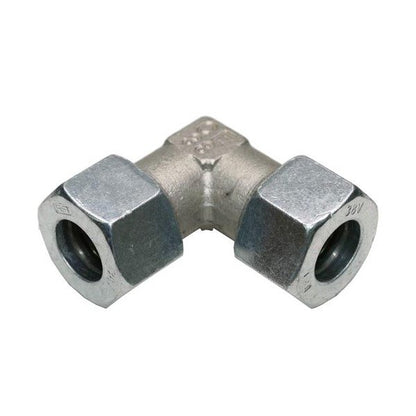

Stainless Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting

Name: Stainless Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-9e1c66
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-9e1c66

High-quality stainless steel equal elbow with B3 ring. DIN 2353 compression fitting, light-duty. Nominal pressure: 315 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Equal Elbow - Equipped B3 Ring is a light-duty fitting designed for optimal performance. Constructed with high-quality stainless steel, this elbow ensures durability and reliability in various applications. With a tube diameter of 18.0mm and a nominal operating pressure of 315 bar, it meets DIN 2353 standards, guaranteeing precision and quality. The compact design, with dimensions L2: 23.5mm, L3: 40mm, CH1: 24mm, and CH2: 32mm, makes it versatile for diverse systems, providing a secure and efficient connection solution for institutional needs.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

32 mm

Specifications L2

23.5 mm

Specifications L3

40 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm

Stainless Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
