Stainless Steel Equal Elbow with B4 Ring for DIN 2353 Compression Fittings
Stainless Steel Equal Elbow with B4 Ring for DIN 2353 Compression Fittings
SKU:FIT-3b1cf9
Durable Stainless Steel Equal Elbow for DIN 2353 Fittings, 6.0mm tube diameter, 315 bar pressure, DIN 2353 compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow with B4 Ring for DIN 2353 Compression Fittings
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow with B4 Ring for DIN 2353 Compression Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

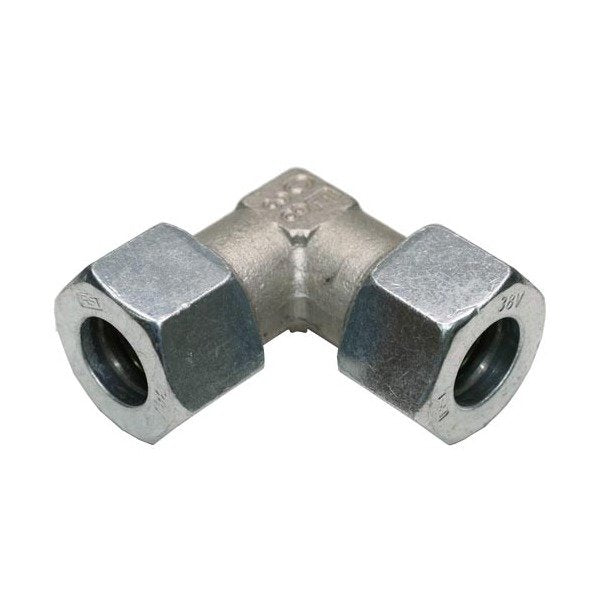

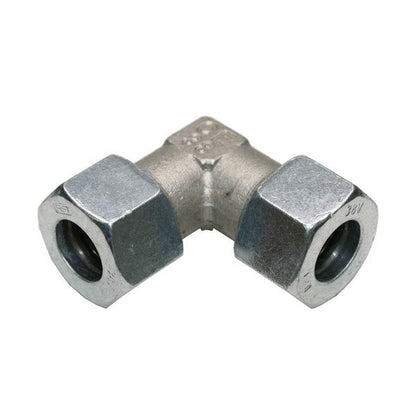

The Stainless Steel Equal Elbow - Equipped B4 Ring is a durable fitting designed for light-duty applications, featuring a tube diameter of 6.0mm and a nominal operating pressure of 315 bar. This fitting meets the stringent DIN 2353 standards, ensuring quality and reliability. With precise dimensions and sturdy construction, it offers secure connections and efficient performance, making it ideal for various industrial and hydraulic systems.

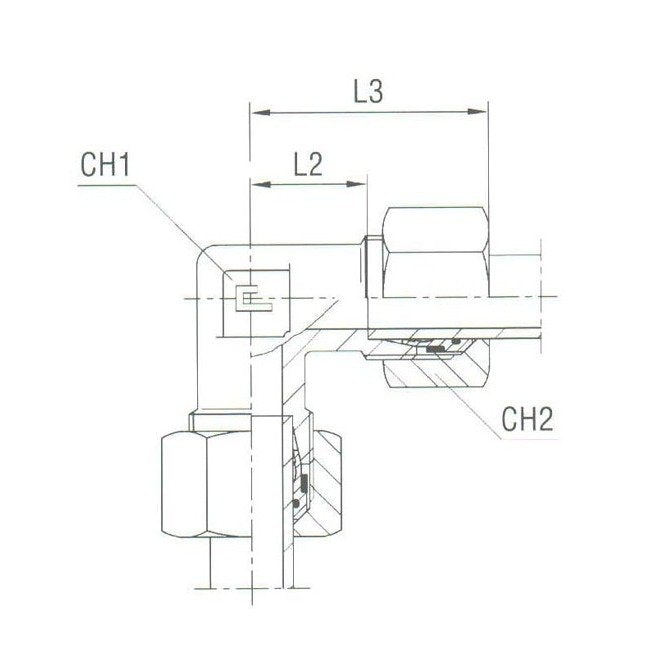

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
12.0 mm
Specifications L3
27.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
