Stainless Steel Equal Elbow with DIN 2353 Compression Fittings
Stainless Steel Equal Elbow with DIN 2353 Compression Fittings
SKU:FIT-5ec83e
High-quality Stainless Steel Equal Elbow with B3 Ring for light-duty applications. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow with DIN 2353 Compression Fittings
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow with DIN 2353 Compression Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

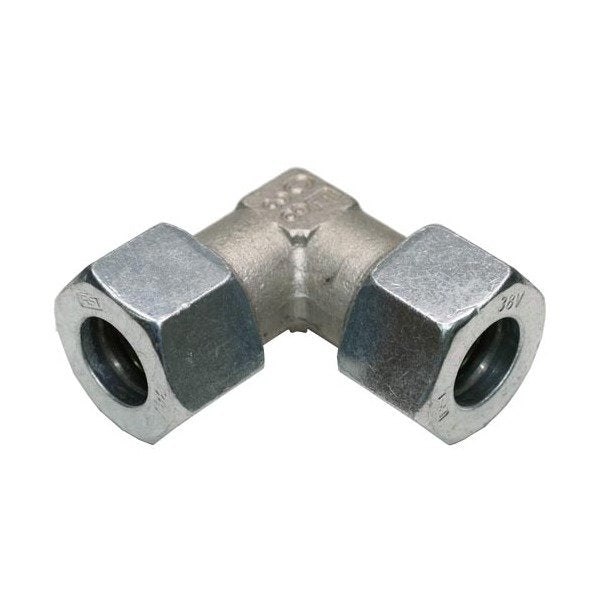

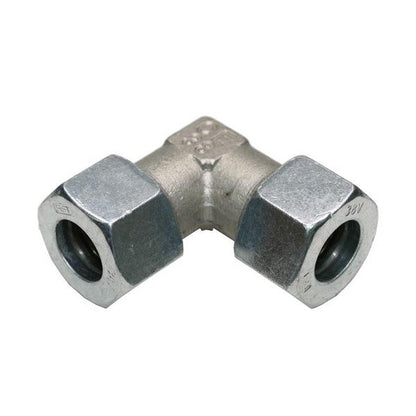

The Stainless Steel Equal Elbow with B3 Ring is designed for light-duty applications, with a tube diameter of 28mm and a nominal operating pressure of 160 bar. Crafted with precision and in compliance with DIN 2353 standards, this elbow ensures reliable performance and durability. Its compact design with CH1 of 36mm and CH2 of 41mm makes it ideal for various industrial settings, offering seamless connectivity and efficient fluid flow.

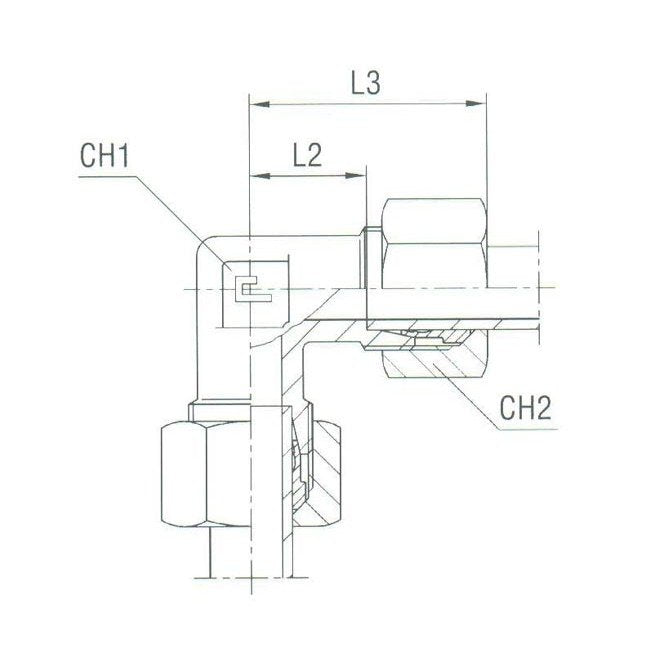

Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
41 mm
Specifications L2
30.5 mm
Specifications L3
47 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
