Stainless Steel Equal Elbow with Equipped B4 Ring - Heavy Duty DIN 2353 Compression Fitting
Stainless Steel Equal Elbow with Equipped B4 Ring - Heavy Duty DIN 2353 Compression Fitting
SKU:FIT-2bed47
Heavy-duty Stainless Steel Equal Elbow with B4 Ring, DIN 2353 Compression Fitting, 38.0 mm tube diameter, 315 bar pressure
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Stainless Steel Equal Elbow with Equipped B4 Ring - Heavy Duty DIN 2353 Compression Fitting
$59.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Elbow with Equipped B4 Ring - Heavy Duty DIN 2353 Compression Fitting
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

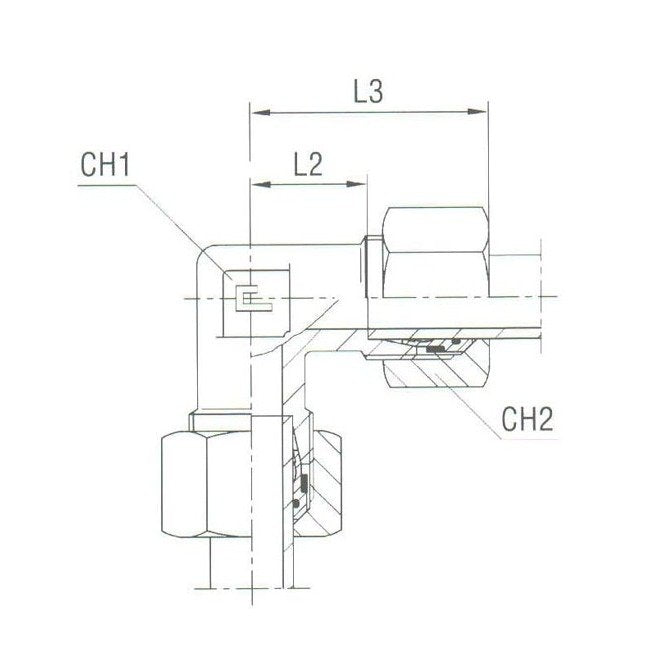

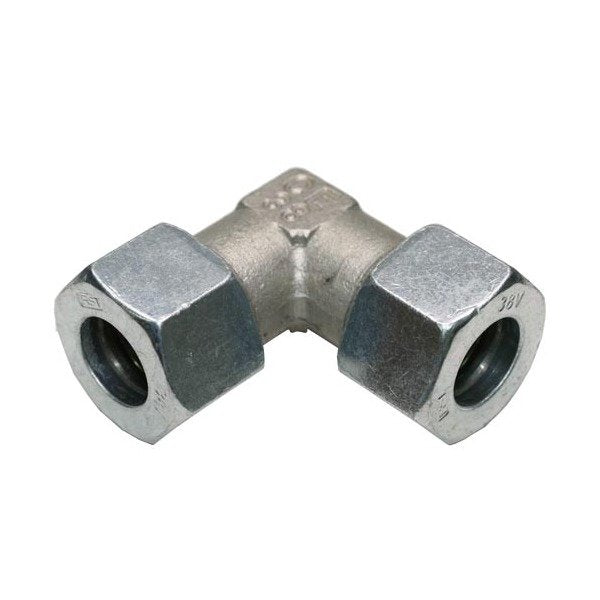

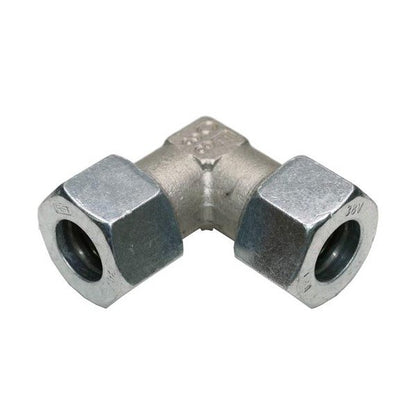

The Stainless Steel Equal Elbow with Equipped B4 Ring is a heavy-duty fitting designed for industrial applications, ensuring reliable performance under pressure. Crafted from premium stainless steel, it features a tube diameter of 38.0 mm and a nominal operating pressure of 315 bar. With precise dimensions (L2: 41.0 mm, L3: 72 mm, CH1: 50 mm, CH2: 60 mm) meeting DIN 2353 standards, this fitting guarantees durability and efficiency.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
60 mm
Specifications L2
41.0 mm
Specifications L3
72 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
