Stainless Steel Equal Non Return Valve - Standard Body, 350 Bar

Name: Stainless Steel Equal Non Return Valve - Standard Body, 350 Bar
Brand: World Wide Metric, Inc.
SKU: FIT-d0dff8
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-d0dff8

High-quality Stainless Steel Non Return Valve, 350 Bar, Durable & Reliable

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Equal Non Return Valve - Standard Body is a durable and reliable hydraulic check valve suitable for a wide range of applications. It features a pressure range from Extra Light Duty to Heavy Duty, with a nominal operating pressure of 350 bar. The valve is constructed from high-quality stainless steel, ensuring longevity and resistance to corrosion. With precise measurements and JIC 37° threading, this valve offers secure and efficient operation, making it ideal for both consumer and institutional use.

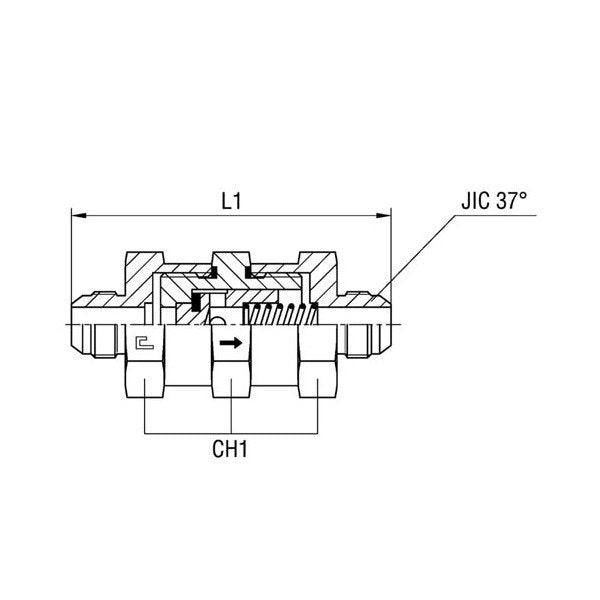

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications Jic 37 Thread

9/16-18

Specifications L1

76.2 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

10 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/8 in
