Stainless Steel Equal Tee - DIN 2353 Compression Fitting

Name: Stainless Steel Equal Tee - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-f77502
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f77502

Durable Stainless Steel Equal Tee for secure, leak-free connections in light-duty applications. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

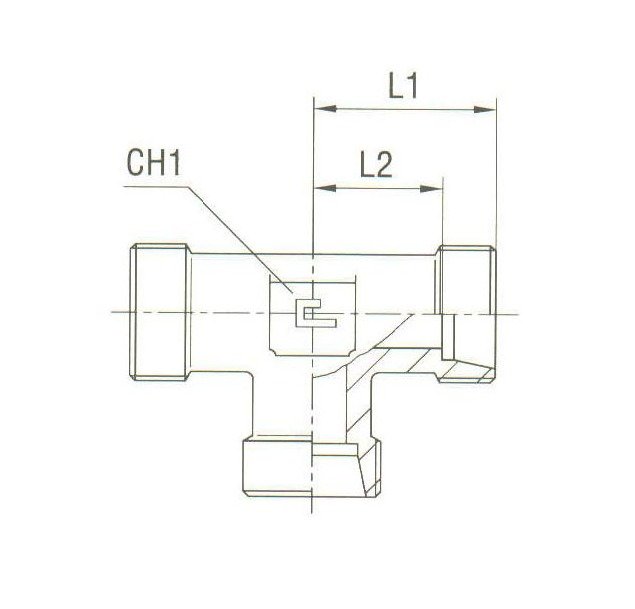

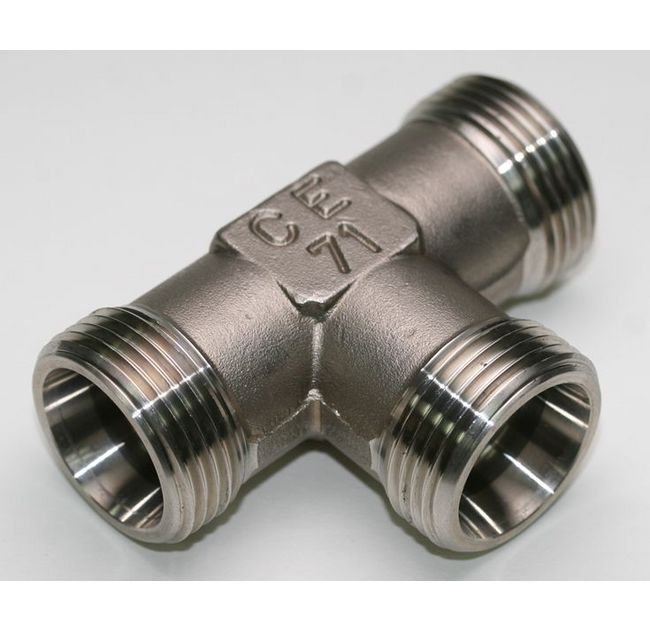

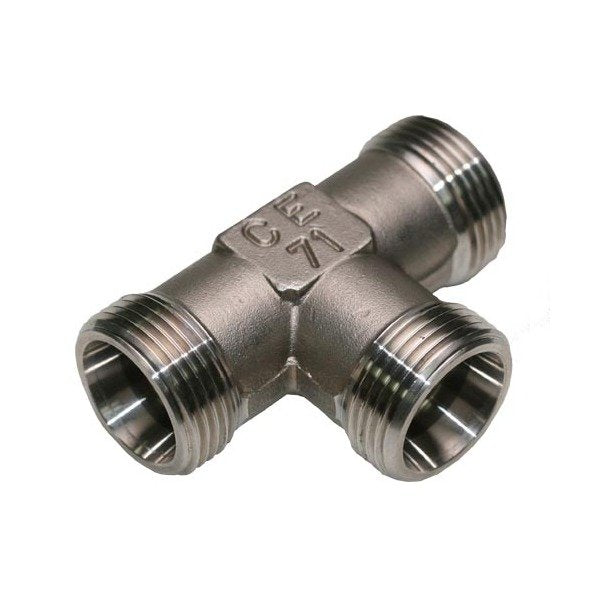

The Stainless Steel Equal Tee - Body Only is a reliable fitting designed for light-duty applications, constructed with high-quality stainless steel material for durability. With a tube diameter of 35.0mm and a nominal operating pressure of 160 bar, this Equal Tee ensures secure connections in fluid systems. Meeting DIN 2353 standards, it features precise dimensions including L1: 45.0mm, L2: 34.5mm, and CH1: 41mm, making it ideal for various industrial settings requiring efficient and leak-free connections.

Product Specifications

Specifications Ch1

41 mm

Specifications L1

45.0 mm

Specifications L2

34.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm

Stainless Steel Equal Tee - DIN 2353 Compression Fitting
