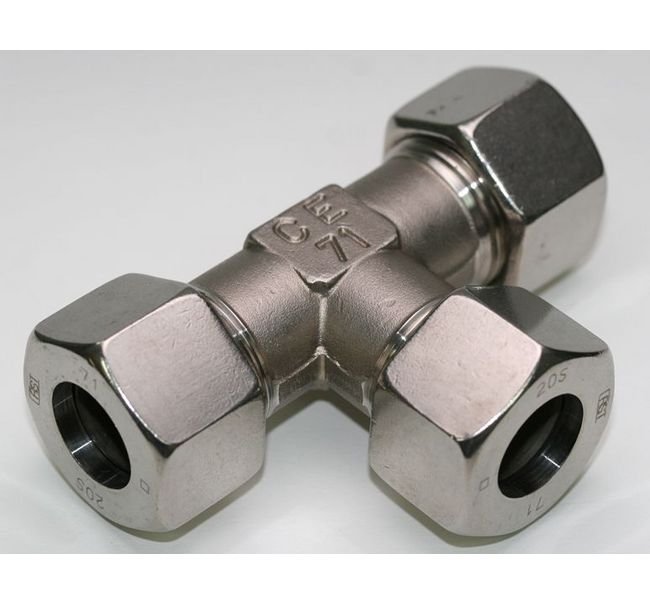

Stainless Steel Equal Tee - DIN 2353 Compression Fitting with B3 Ring
Stainless Steel Equal Tee - DIN 2353 Compression Fitting with B3 Ring
SKU:FIT-b748ea
High-quality Stainless Steel Equal Tee for hydraulic systems with DIN 2353 compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Tee - DIN 2353 Compression Fitting with B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Tee - DIN 2353 Compression Fitting with B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Equal Tee equipped with a B3 Ring is engineered for durability and precision. With a tube diameter of 18.0mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance in light-duty applications. Compliant with DIN 2353 standards, it offers a seamless connection in hydraulic systems, making it ideal for both consumer and institutional use.

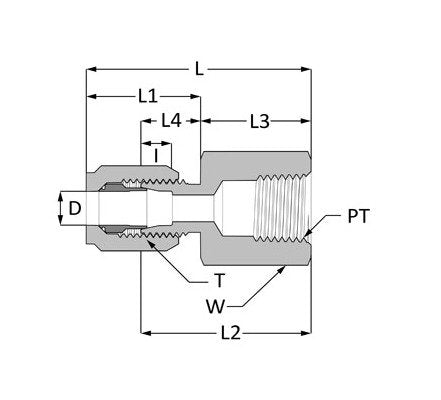

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
32 mm
Specifications L2
23.5 mm
Specifications L3
40 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
