Stainless Steel Equal Tee - Heavy Duty DIN 2353 Compression Fitting
Stainless Steel Equal Tee - Heavy Duty DIN 2353 Compression Fitting
SKU:FIT-20ed8b
Premium stainless steel Equal Tee for heavy-duty tube connections, meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Tee - Heavy Duty DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Tee - Heavy Duty DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

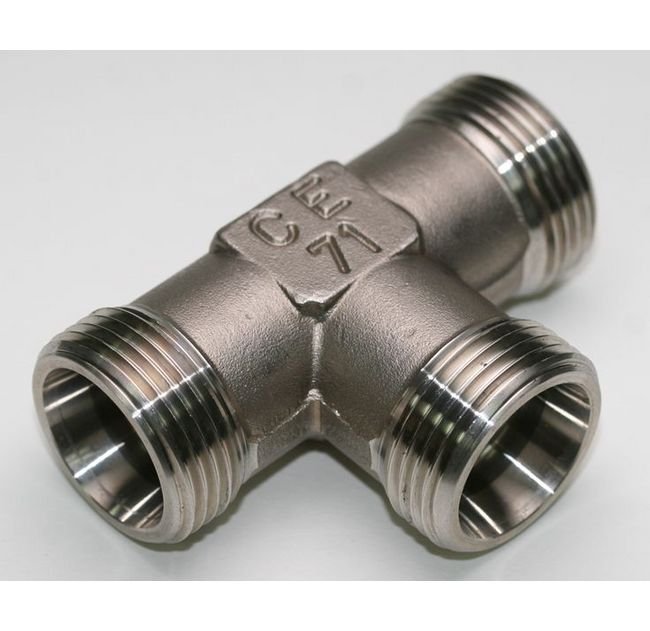

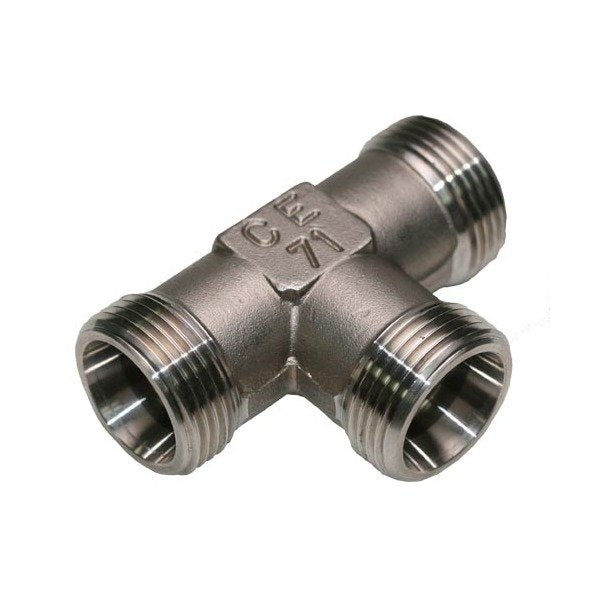

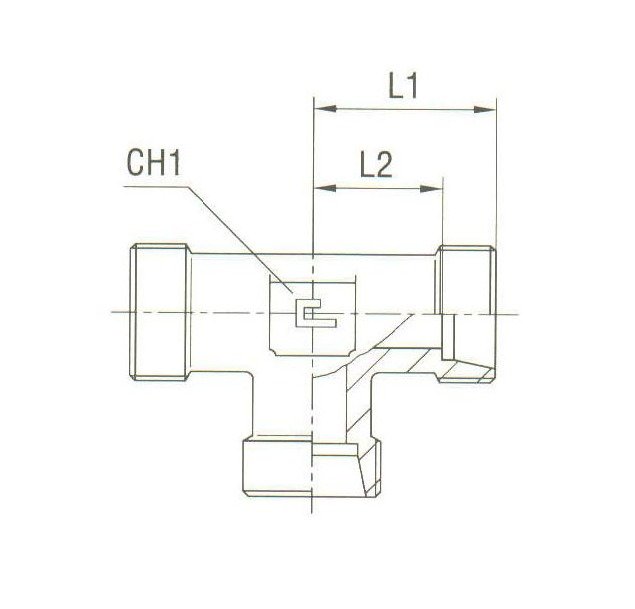

The Stainless Steel Equal Tee - Body Only is a heavy-duty fitting designed for precise tube connections in high-pressure environments. Crafted from premium stainless steel, this tee ensures durability and corrosion resistance. With a tube diameter of 16.0mm and a nominal operating pressure of 400 bar, it meets stringent DIN 2353 standards. The L1 dimension is 33.0mm, L2 is 24.5mm, and CH1 is 24mm, providing a secure and precise fit.
Product Specifications
Specifications Ch1
24 mm
Specifications L1
33.0 mm
Specifications L2
24.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
