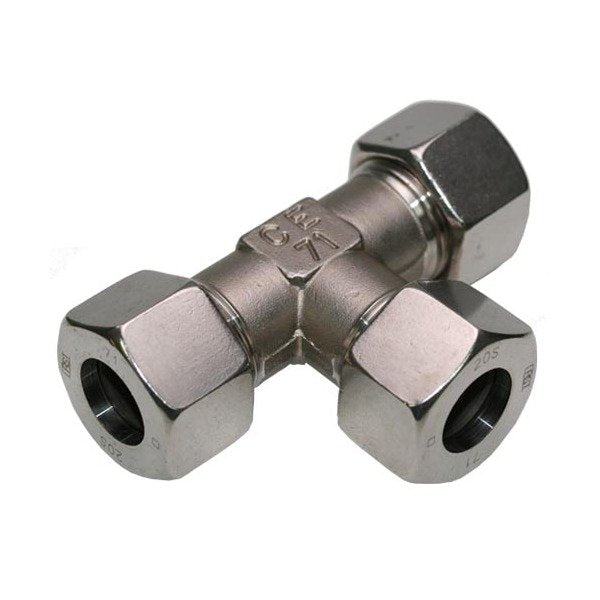

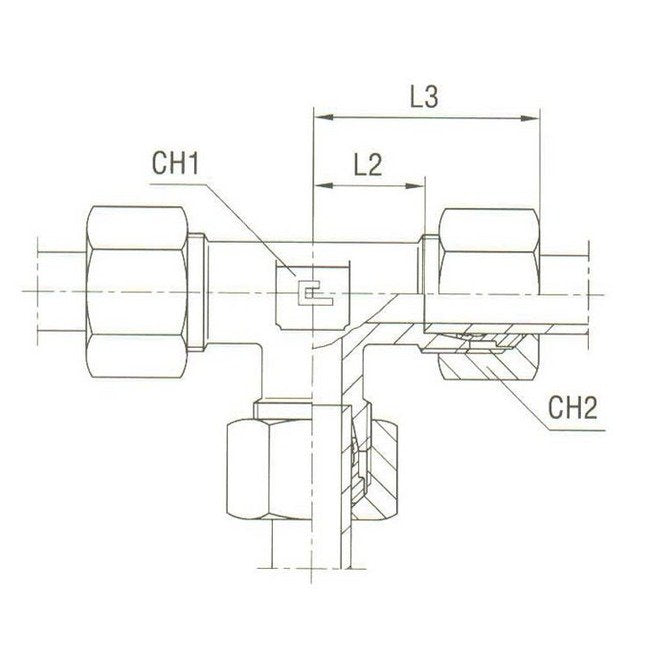

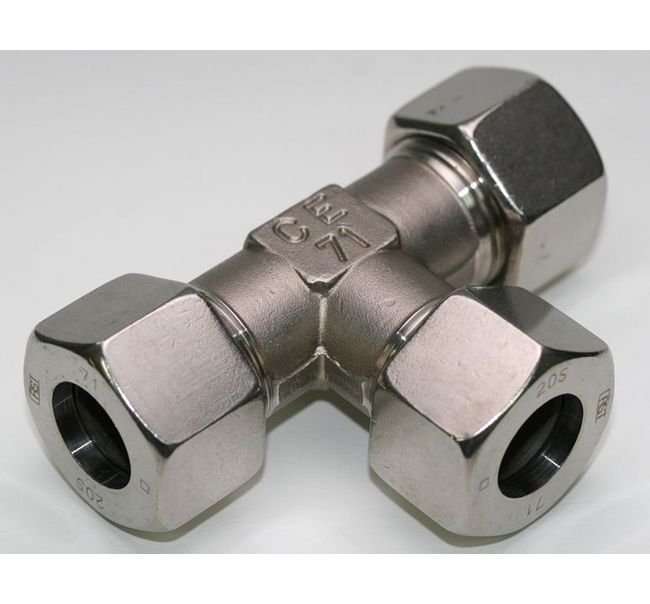

The Stainless Steel Equal Tee with B3 Ring is a durable compression fitting designed for light-duty applications. Constructed from high-quality stainless steel, it features a tube diameter of 22mm and a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, this tee offers precise dimensions with L2 at 27.5mm and L3 at 44.0mm, along with CH1 at 27mm and CH2 at 36mm. Its innovative B3 ring enhances sealing reliability, making it a reliable choice for various plumbing systems.
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
36 mm
Specifications L2
27.5 mm
Specifications L3
44.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
