Stainless Steel Equal Tee with B3 Ring Compression Fitting
Stainless Steel Equal Tee with B3 Ring Compression Fitting
SKU:FIT-e0bd36
Premium Stainless Steel Equal Tee with B3 Ring Compression Fitting - Light Duty, DIN 2353, 12.0mm, 315 bar
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Tee with B3 Ring Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Tee with B3 Ring Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

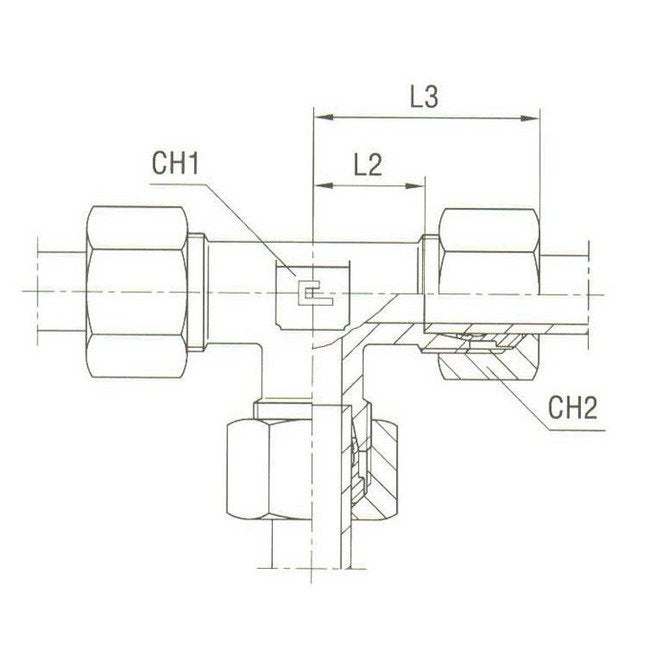

The Stainless Steel Equal Tee with B3 Ring Compression Fitting is designed for Light Duty applications with a Tube Diameter of 12.0 mm and a Nominal Operating Pressure of 315 bar. Meeting DIN 2353 standards, this fitting ensures high durability and precision. With dimensions L2 of 17.0 mm and L3 of 32.0 mm, it offers a perfect fit for various piping systems. The CH1 and CH2 dimensions of 17.0 mm and 22 mm respectively, provide seamless connectivity and efficient flow. Ideal for both consumer and institutional use, this fitting guarantees reliability and performance.
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
22 mm
Specifications L2
17.0 mm
Specifications L3
32.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
