Stainless Steel Equal Tee with B3 Ring - DIN 2353 Compression Fitting
Stainless Steel Equal Tee with B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-3d8d86
Durable Stainless Steel Equal Tee with B3 Ring for light-duty applications. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Equal Tee with B3 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Equal Tee with B3 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

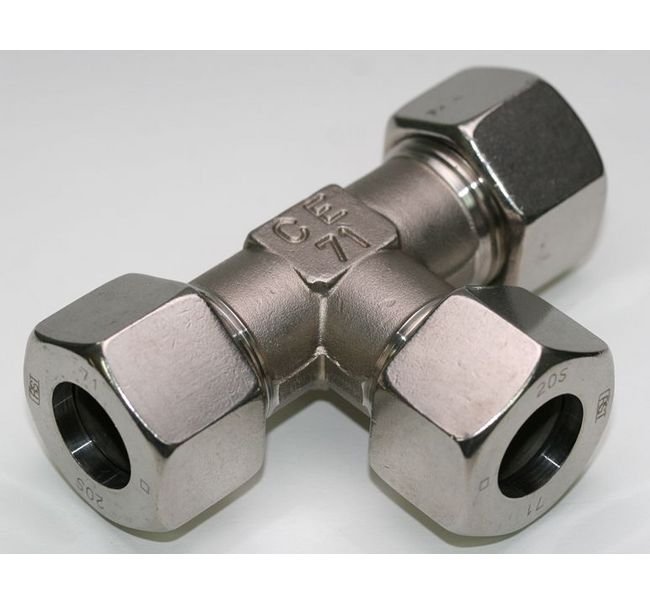

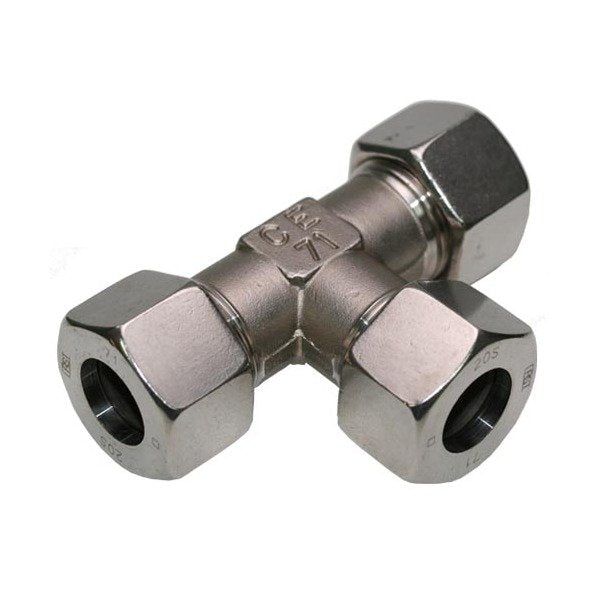

The Stainless Steel Equal Tee with B3 Ring is a durable and reliable fitting designed for light-duty applications. Constructed from high-quality stainless steel, this fitting ensures longevity and corrosion resistance. With a tube diameter of 6.0 mm and a nominal operating pressure of 315 bar, it meets DIN 2353 standards, making it ideal for various industrial settings.

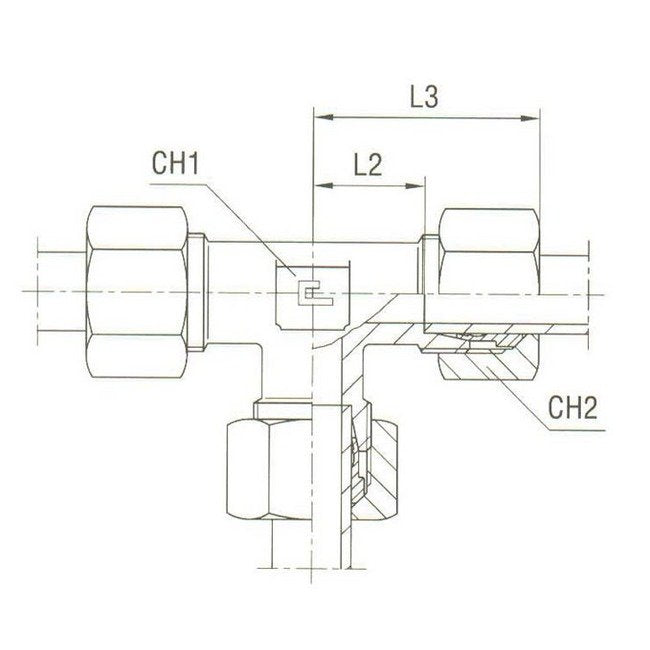

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
12.0 mm
Specifications L3
27.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
