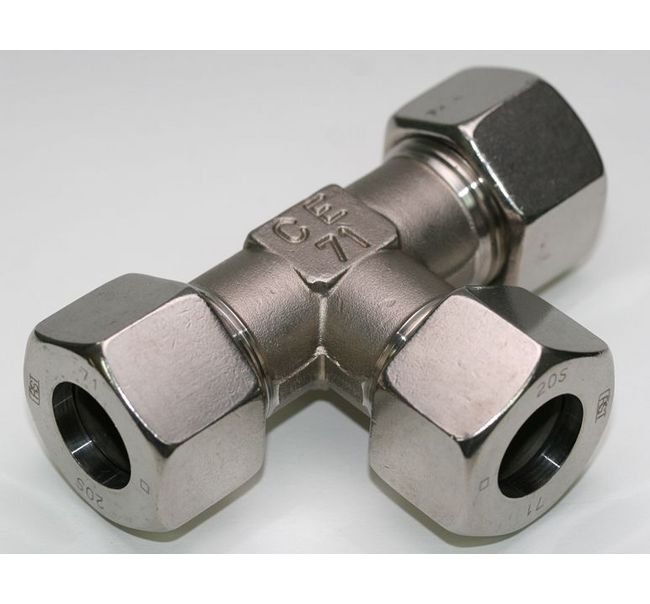

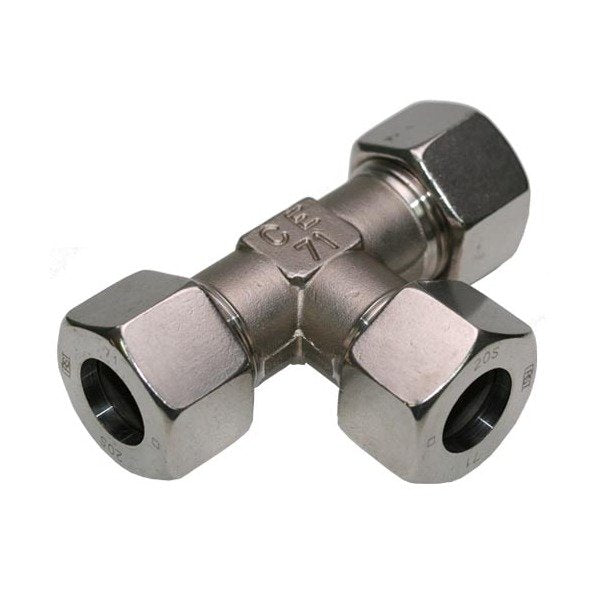

Stainless Steel Equal Tee with Equipped B3 Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Equal Tee with Equipped B3 Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-a902e5
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-a902e5

High-performance Stainless Steel Equal Tee with Equipped B3 Ring, DIN 2353 compliant, for applications up to 100 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

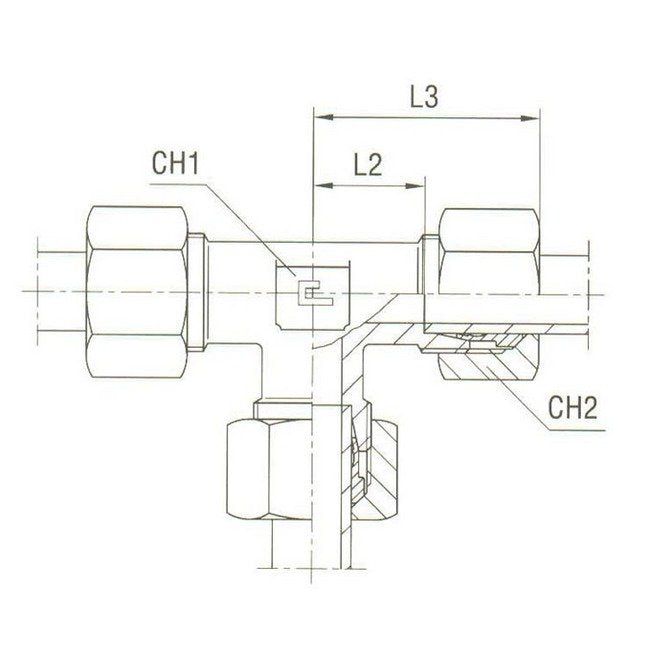

The Stainless Steel Equal Tee with Equipped B3 Ring is a versatile compression fitting designed for demanding applications. Crafted from durable Stainless Steel, this fitting ensures reliable performance under pressure up to 100 bar. With precise dimensions meeting DIN 2353 standards, it offers exceptional resistance to corrosion and high connectivity. The tee features a tube diameter of 6.0mm, ensuring seamless integration into various systems. Its compact design with CH1 of 9mm and CH2 of 12mm makes it ideal for space-constrained installations, while the L2 and L3 dimensions of 9.5mm and 21.0mm respectively ensure accurate fittings for efficient fluid flow.

Product Specifications

Specifications Ch1

9 mm

Specifications Ch2

12 mm

Specifications L2

9.5 mm

Specifications L3

21.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm
