Stainless Steel Equal Tee with Heavy Duty Equipped B4 Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Equal Tee with Heavy Duty Equipped B4 Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-6902cf
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-6902cf

Shop our premium Stainless Steel Equal Tee with Heavy Duty Equipped B4 Ring - perfect for high-pressure systems. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

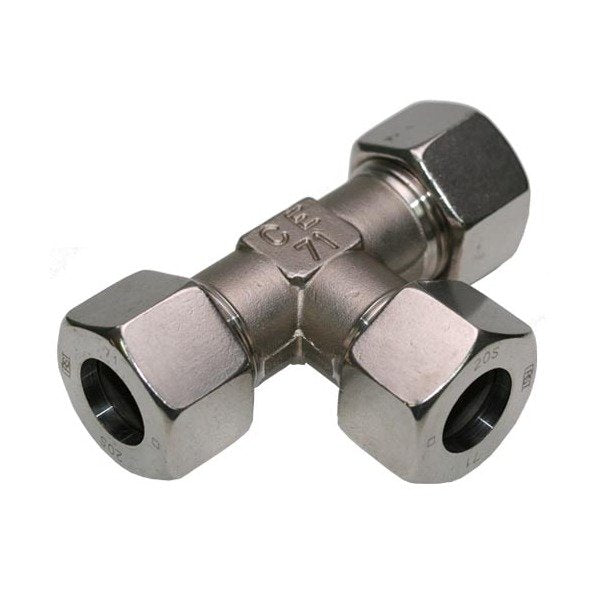

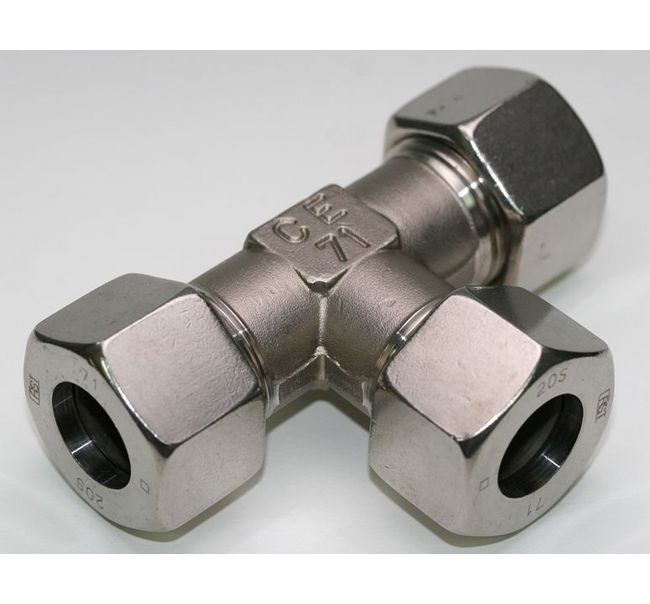

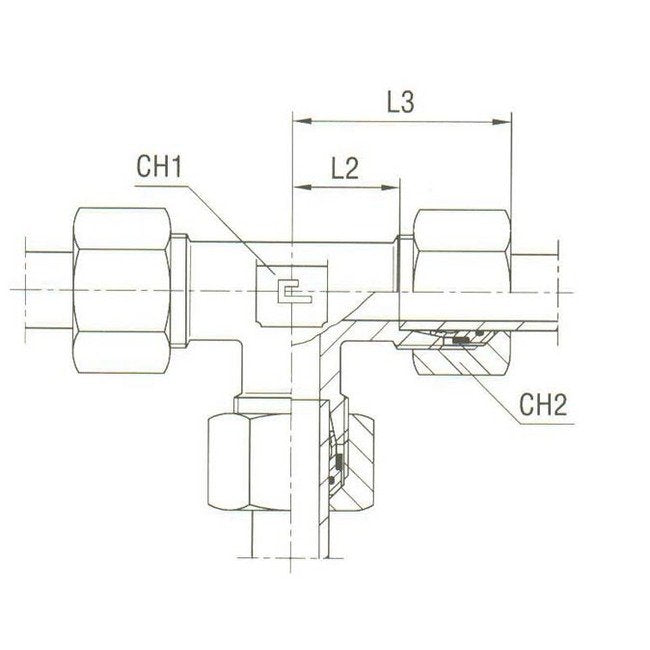

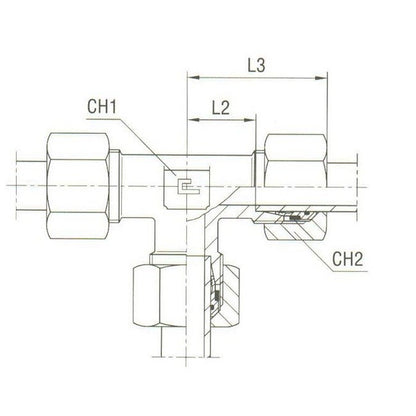

The Stainless Steel Equal Tee with Heavy Duty Equipped B4 Ring is designed to withstand high pressure, with a maximum nominal operating pressure of 630 bar. Constructed from durable stainless steel, this fitting ensures long-lasting performance. With dimensions meeting DIN 2353 standards, it offers precision and reliability in hydraulic systems. The tee features a tube diameter of 14.0 mm, L2 length of 22 mm, L3 length of 40 mm, CH1 dimension of 19.0 mm, and CH2 dimension of 27 mm, making it ideal for industrial applications requiring robust fittings.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

27 mm

Specifications L2

22 mm

Specifications L3

40 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm
