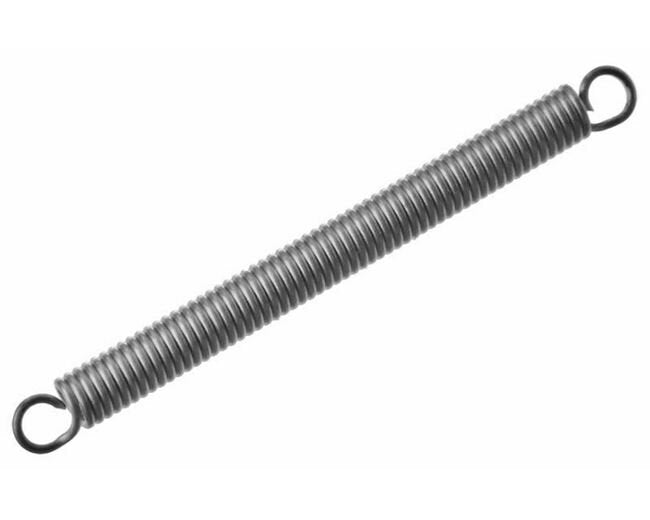

Stainless Steel Extension Spring - 302 Grade
Stainless Steel Extension Spring - 302 Grade
SKU:SPR-08bdf8
Durable Stainless Steel Extension Spring for secure and reliable mechanical applications. Meets ASTM-A313 & AMS-5688 standards.
Regular price
$16.99
Regular price
Sale price
$16.99
Unit price
per
Initiate Order
Stainless Steel Extension Spring - 302 Grade
$16.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Extension Spring - 302 Grade
$16.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Extension Spring is a reliable mechanical solution manufactured from high-quality 302 Stainless Steel, meeting ASTM-A313 and AMS-5688 standards. This corrosion-resistant spring is designed for applications such as Cable Return, Balance, and Belt Tensioning. With a standard part design, it offers a spring rate of 3.2 lbs/in and an initial tension of 2.83 pounds, ensuring dependable performance in various load conditions. The full twist loop ends provide secure attachment points while maintaining proper stress levels and manufacturing limits.
Product Specifications
Specifications Application Uses
Cable Return, Balance, Belt Tensioner, etc.
Specifications Country Of Origin
US
Specifications Depth
1.125 inches
Specifications Ends
Full Twist Loop
Specifications Featuresadvantagesbenefits
Standard Part, Corrosion Resistant
Specifications Free Length In
6.50 inches
Specifications Height
6.50 inches
Specifications Initial Tension Lbs
2.83 pounds
Specifications Material
302 Stainless Steel per ASTM-A313 or AMS-5688
Specifications Outside Dia In
1.125 inches
Specifications Spring Rate Lbsin
3.2 lbs/in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.225599 pounds
Specifications Width
1.125 inches
Specifications Wire Dia In
0.105 inches
