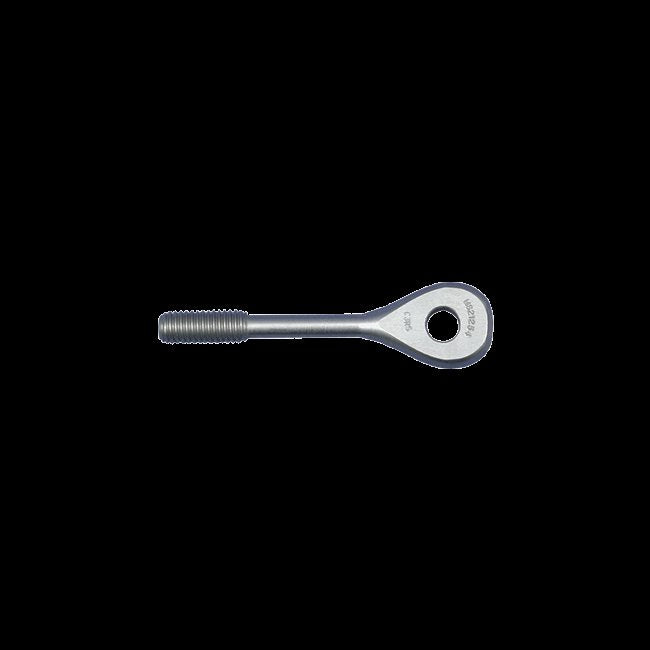

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

SKU:MIL-c23e5c

High-strength stainless steel turnbuckle meeting military specifications for reliable performance in demanding applications.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

$39.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

Stainless Steel Eye End Turnbuckle Clip Locking - MS21254C

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Eye End Turnbuckle Clip Locking MS21254C is a top-quality military specification product that replaces the AN 165 standard. This durable turnbuckle is designed to meet the highest standards, featuring a wire rope diameter reference of 5/32 inches, a maximum safe working load of 3,200 pounds, and precise dimensions to ensure a secure fit. With UNF-3A threads and stainless steel construction, this turnbuckle offers superior strength, corrosion resistance, and reliability, making it ideal for military and institutional applications.

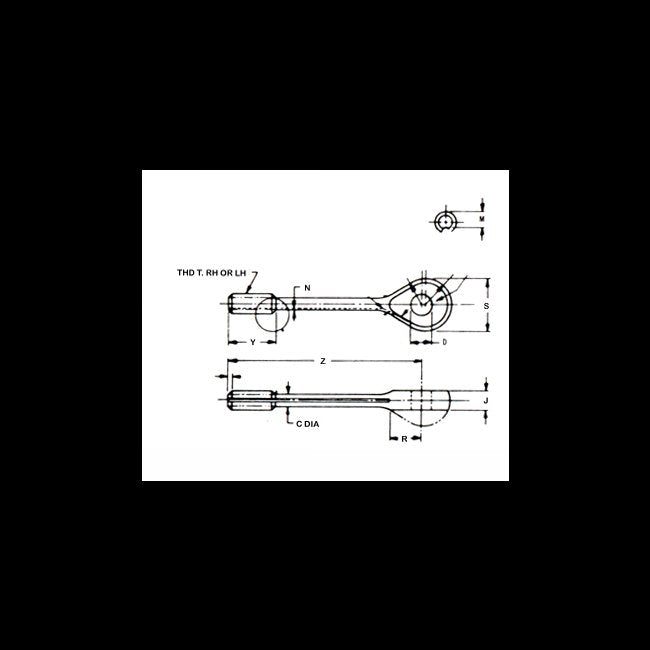

Product Specifications

Specifications C 006 000 Diain
.189
Specifications D 002 000 Diain
.250
Specifications J 005
.219
Specifications Mbs Lbs
3,200
Specifications M Max
.2224
Specifications M Min
.2152
Specifications N Max
.0103
Specifications S Dia
.625
Specifications Thread T Unf 3a
1/4-28
Specifications Wire Rope Dia Ref
5/32
Specifications Y 047 In
.625
Specifications Z 031 015
2.625
CAGE
0T9L4
NAICS
332999
PSC
5340
