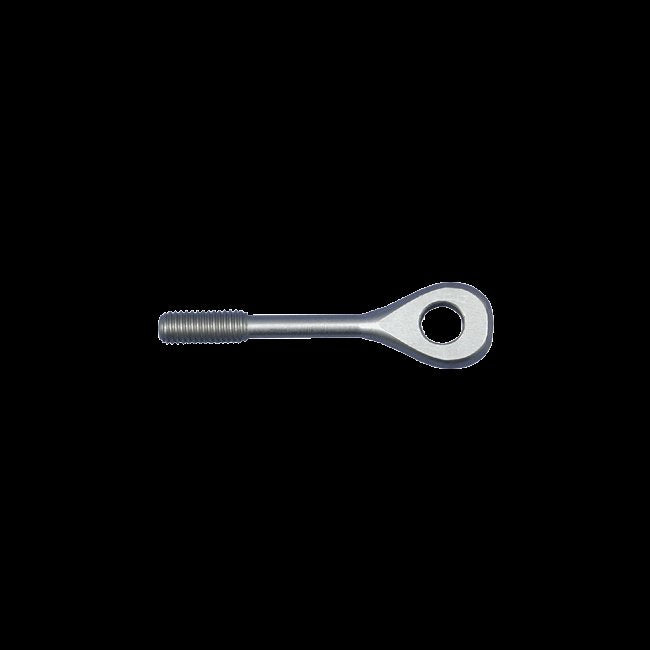

Stainless Steel Eye End Turnbuckle Clip Locking MS21255C
Stainless Steel Eye End Turnbuckle Clip Locking MS21255C
SKU:MIL-598b97
Durable Stainless Steel Turnbuckle for Wire Rope Applications - Military Specification MS21255C, Replaces AN 170
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Stainless Steel Eye End Turnbuckle Clip Locking MS21255C is a military specification product designed for wire rope applications. Crafted to replace AN 170, this turnbuckle excels in durability and strength. With specifications including a Wire Rope Dia Ref. of 1/16" and a MBS of 800 lbs, it ensures reliable performance. The design features UNF-3A threading, precise dimensions, and a corrosion-resistant build, making it ideal for military and institutional use.

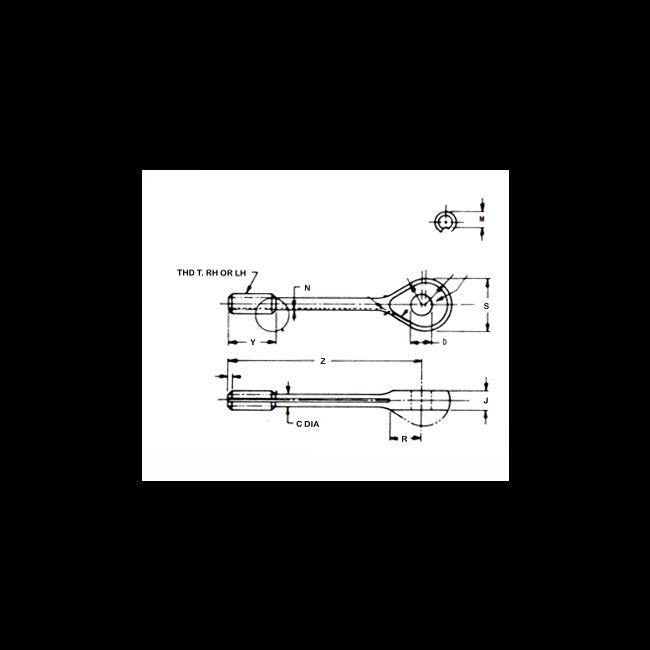

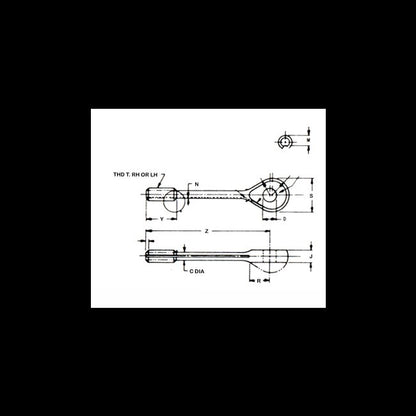

Product Specifications
Specifications A 010 000 Dia
.188
Specifications B Max
.0096
Specifications C 006 000 Diain
.094
Specifications D 031
.325
Specifications J 005
.125
Specifications Mbs Lbs
800
Specifications M Max
.1139
Specifications M Min
.1094
Specifications S Dia
.375
Specifications Thread T Unf 3a
6 - 40
Specifications Wire Rope Dia Ref
1/16
Specifications Y 047
.375
Specifications Z 031 015
2.375
CAGE
0T9L4
NAICS
332999
PSC
5340
