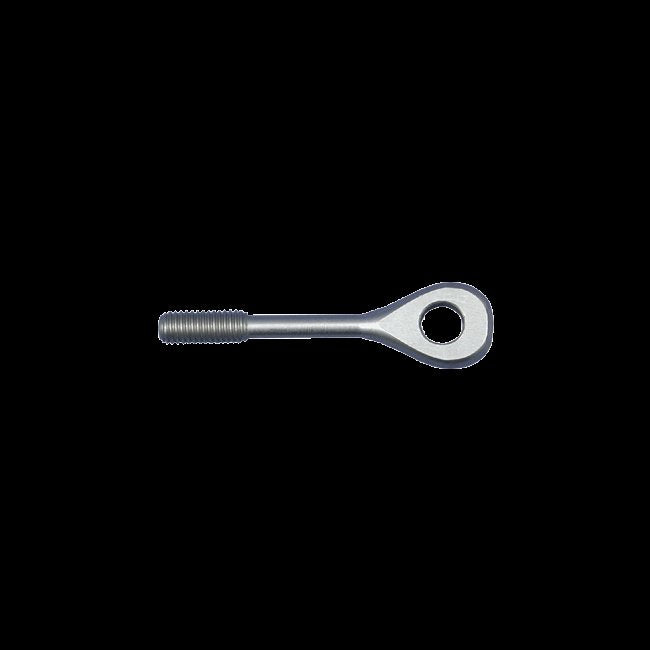

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

SKU:MIL-255b7b

Stainless Steel Eye End Turnbuckle Clip for 3/32" Wire Rope, MBS 1,600 lbs. Replaces AN 170. Precise, Durable & Reliable.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

Stainless Steel Eye End Turnbuckle Clip (MS21255C) for 3/32" Wire Rope

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Eye End Turnbuckle Clip (MS21255C) is a durable and reliable hardware component designed for 3/32" wire rope applications. With a Minimum Breaking Strength (MBS) of 1,600 lbs, this turnbuckle features precise dimensions including Wire Rope Dia Ref. of 3/32", Thread T UNF-3A of 10-32, and dimensions conforming to industry standards. Built to replace AN 170, this clip locking turnbuckle ensures secure and precise wire rope connections for military and institutional applications, meeting stringent quality requirements.

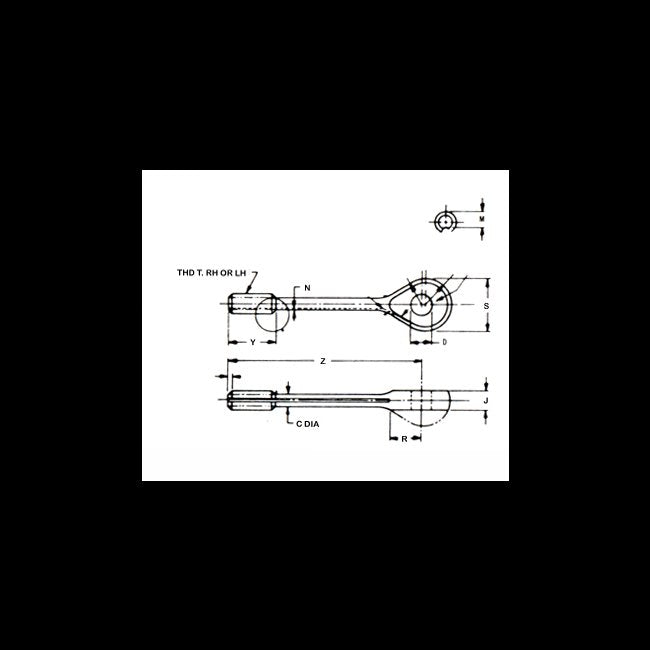

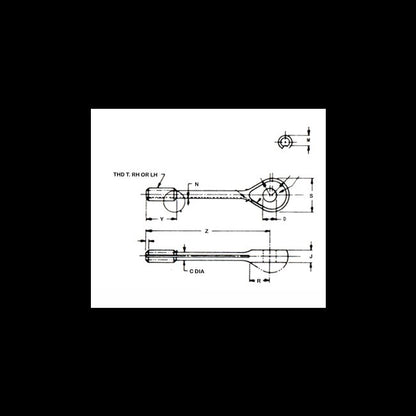

Product Specifications

Specifications A 010 000 Dia
.219
Specifications B Max
.0077
Specifications C 006 000 Diain
.133
Specifications D 031
.416
Specifications J 005
.188
Specifications Mbs Lbs
1,600
Specifications M Max
.1638
Specifications M Min
.1568
Specifications S Dia
.500
Specifications Thread T Unf 3a
10 - 32
Specifications Wire Rope Dia Ref
3/32
Specifications Y 047
.500
Specifications Z 031 015
1.625
CAGE
0T9L4
NAICS
332999
PSC
5340
