Stainless Steel Eye End Turnbuckle Locking Clip MS21254C
Stainless Steel Eye End Turnbuckle Locking Clip MS21254C
SKU:MIL-cd8f50
Stainless Steel Turnbuckle Clip Locking - NAS 648 standard compliant, ideal for military applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

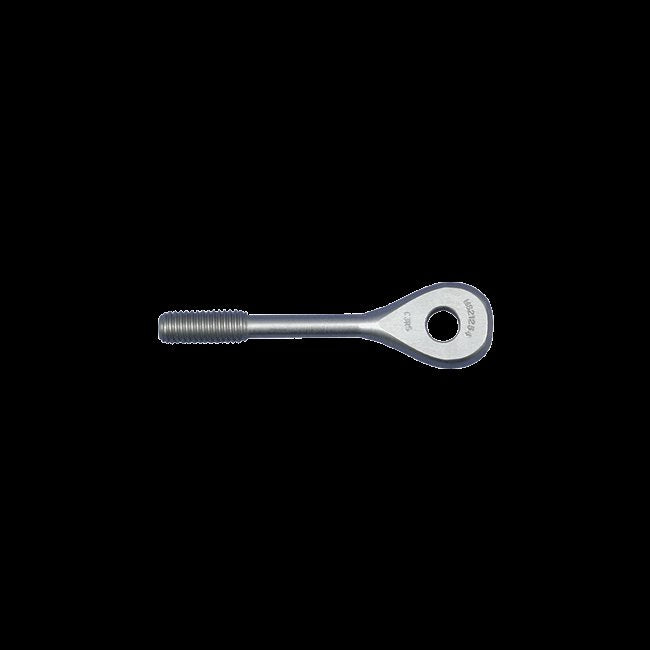

The Stainless Steel Eye End Turnbuckle Locking Clip MS21254C is a durable and dependable hardware component meeting rigorous military specifications. With a Wire Rope Dia Ref. of 1/16 inch and a maximum breaking strength (MBS) of 800 lbs, this turnbuckle clip ensures secure fastening. Its UNF-3A threaded design (6-40) and precise dimensions make it suitable for various applications. Compliant with NAS 648 standards and replacing AN 165, this clip lock offers superior reliability and performance.

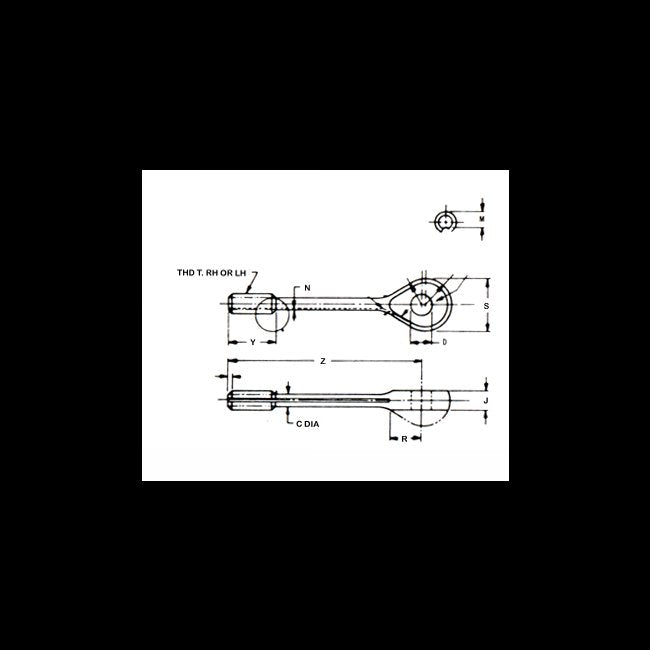

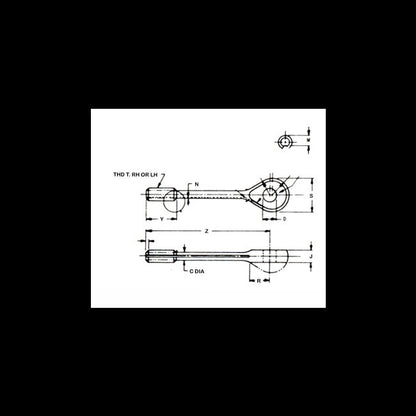

Product Specifications
Specifications C 006 000 Diain
.094
Specifications D 002 000 Diain
.190
Specifications J 005
.125
Specifications Mbs Lbs
800
Specifications M Max
.1139
Specifications M Min
.1094
Specifications N Max
.0096
Specifications S Dia
.375
Specifications Thread T Unf 3a
6-40
Specifications Wire Rope Dia Ref
1/16
Specifications Y 047 In
.375
Specifications Z 031 015
1.500
CAGE
0T9L4
NAICS
332999
PSC
5340
