Stainless Steel Eye End Turnbuckle (MS21255C) for 9/32" Wire Rope

Name: Stainless Steel Eye End Turnbuckle (MS21255C) for 9/32" Wire Rope
Brand: Lexco Cable Manufacturing
SKU: MIL-fa5930
Price: 45.99 USD
Availability: OutOfStock

SKU:MIL-fa5930

High-strength Stainless Steel Turnbuckle for 9/32" Wire Rope. Meets MS21255C Standards. Replaces AN 170.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Eye End Turnbuckle designed to MS21255C specifications is a versatile and durable fastening solution for 9/32" wire ropes. With a high Minimum Breaking Strength (MBS) of 12,500 lbs, threaded UNF-3A for secure fastening, and precise dimensions for optimal performance, this turnbuckle ensures reliability and longevity. It replaces AN 170 standards, offering superior quality and compliance for military and institutional applications.

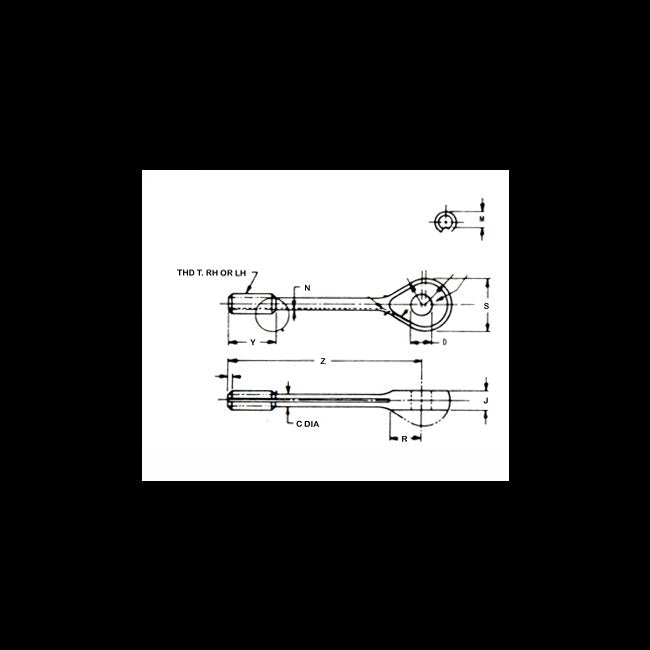

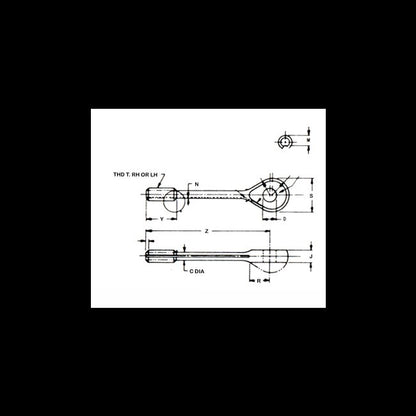

Product Specifications

Specifications A 010 000 Dia

.469

Specifications B Max

.0056

Specifications C 006 000 Diain

.362

Specifications D 031

.831

Specifications J 005

.375

Specifications Mbs Lbs

12,500

Specifications M Max

.4052

Specifications M Min

.3972

Specifications S Dia

.1063

Specifications Thread T Unf 3a

7/16 - 20

Specifications Wire Rope Dia Ref

9/32

Specifications Y 047

.1000

Specifications Z 031 015

3.375

CAGE

0T9L4

NAICS

332510

PSC

4030
