Stainless Steel Eye & Eye Swivel (Fed. Spec. Compliant)
Stainless Steel Eye & Eye Swivel (Fed. Spec. Compliant)
SKU:STA-2b2695
Premium stainless steel swivel for connecting chains, ropes. Compliant with Fed. Spec. RR-C-271F standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Eye & Eye Swivel (Fed. Spec. Compliant)
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Eye & Eye Swivel (Fed. Spec. Compliant)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

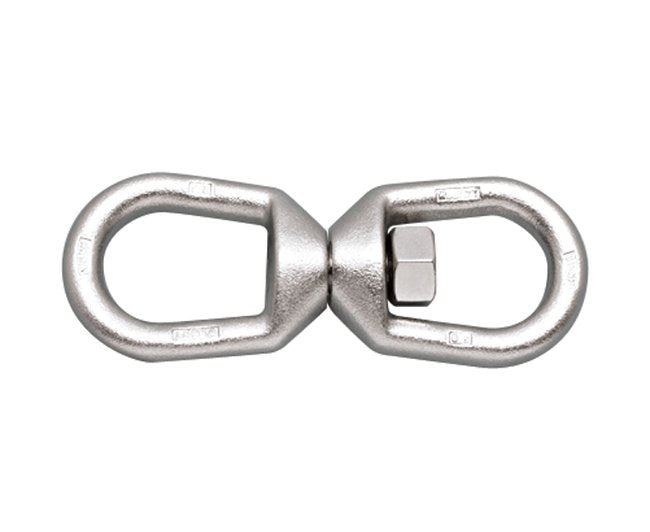

The Stainless Steel Eye & Eye Swivel is a premium-grade positioning device designed for connecting chains, wire ropes, and fibrous ropes with ease. Crafted from drop-forged 316 stainless steel, these swivels boast exceptional corrosion resistance and durability, supporting loads up to 900 lbs. Featuring an extra-large eye opening for versatile applications, this swivel is a reliable solution for stress relief during taut pulls. Compliant with Federal Specification RR-C-271F Type VII, Class 2 standards, ensuring quality and reliability for institutional and government procurement needs.

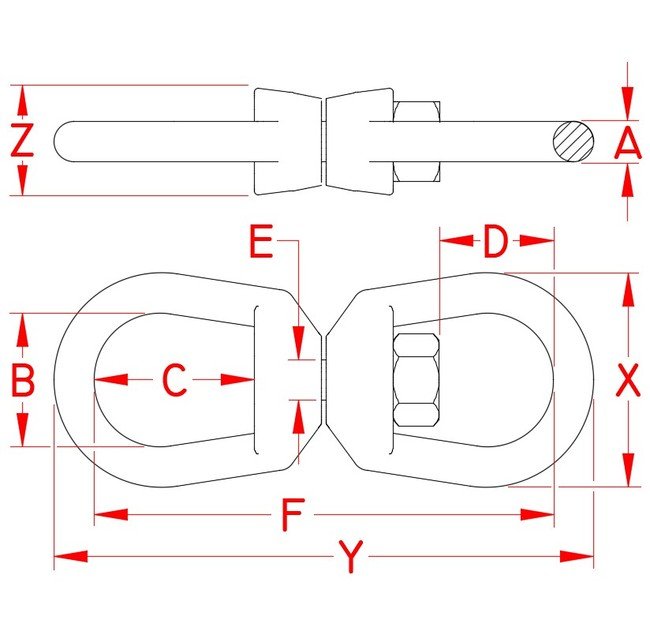

Product Specifications
Specifications Dimension A
1/4 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.06 in
Specifications Dimension D
0.80 in
Specifications Dimension E
0.31 in
Specifications Dimension F
2.92 in
Specifications Dimension X
1.25 in
Specifications Dimension Y
3.37 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
0.17 lb
Specifications Working Load Limit Wll
900 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
