Stainless Steel Eye & Eye Swivel - Fed. Spec. RR-C-271F Class 2
Stainless Steel Eye & Eye Swivel - Fed. Spec. RR-C-271F Class 2
SKU:STA-c11973
Heavy-duty stainless steel swivel for secure connections, compliant with Fed. Spec. RR-C-271F Class 2.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Eye & Eye Swivel - Fed. Spec. RR-C-271F Class 2
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Eye & Eye Swivel - Fed. Spec. RR-C-271F Class 2
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

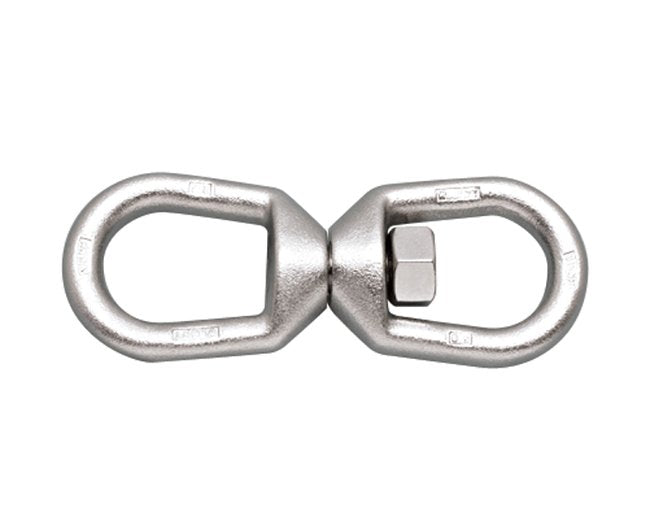

The Stainless Steel Eye & Eye Swivel is a robust and corrosion-resistant solution for connecting various chains, wire ropes, or fibrous ropes. Designed to prevent stress from twisting and knotting, this swivel features a generous load capacity of up to 4,400 lbs. Constructed from high-grade 316 stainless steel, it offers exceptional durability and reliability. Compliant with Federal Specification RR-C-271F Type VII, Class 2 standards (except 316 stainless steel), this positioning device ensures secure connections without swiveling or rotating under load.
Product Specifications

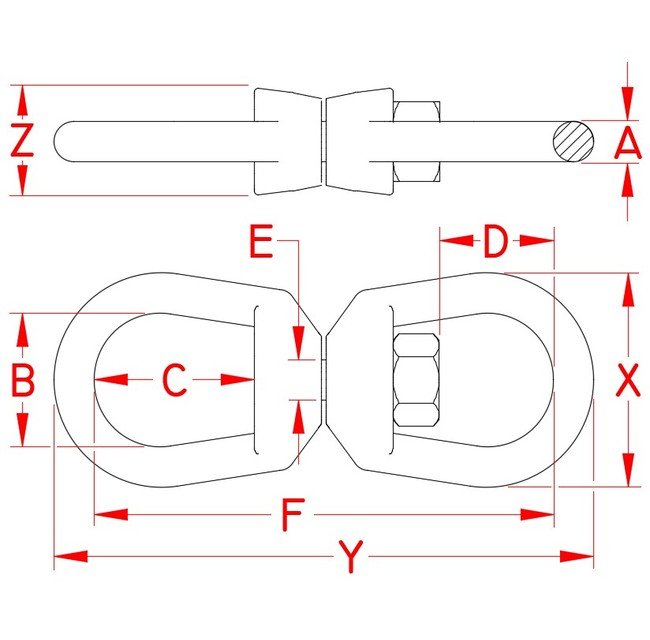

Specifications Dimension A
1/2 in
Specifications Dimension B
1.50 in
Specifications Dimension C
2.00 in
Specifications Dimension D
1.45 in
Specifications Dimension E
0.63 in
Specifications Dimension F
5.42 in
Specifications Dimension X
2.50 in
Specifications Dimension Y
6.50 in
Specifications Dimension Z
1.17 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
1.39 lb
Specifications Working Load Limit Wll
4,400 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
