Stainless Steel Eye & Eye Swivel - Federal Specification Compliant

Name: Stainless Steel Eye & Eye Swivel - Federal Specification Compliant
Brand: Suncor Stainless, Inc.
SKU: STA-1f2649
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-1f2649

Grade 316 stainless steel Eye & Eye Swivel designed for secure connections with a 6,000 lb working load limit.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

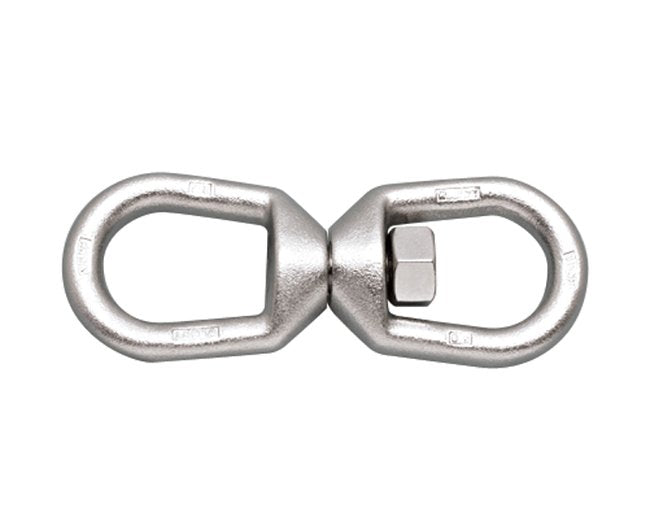

The Stainless Steel Eye & Eye Swivel is a crucial component for connecting chains, wire ropes, or fibrous ropes with ease. Crafted from grade 316 stainless steel, this swivel delivers exceptional corrosion resistance and durability. With a working load limit of 6,000 lbs, it offers reliability in stress relief, thanks to its drop-forged construction. This positioning device, in compliance with Federal Specification: RR-C-271F Type VII, Class 2, is specially designed with an oversized eye opening for seamless connection with various types of hardware.

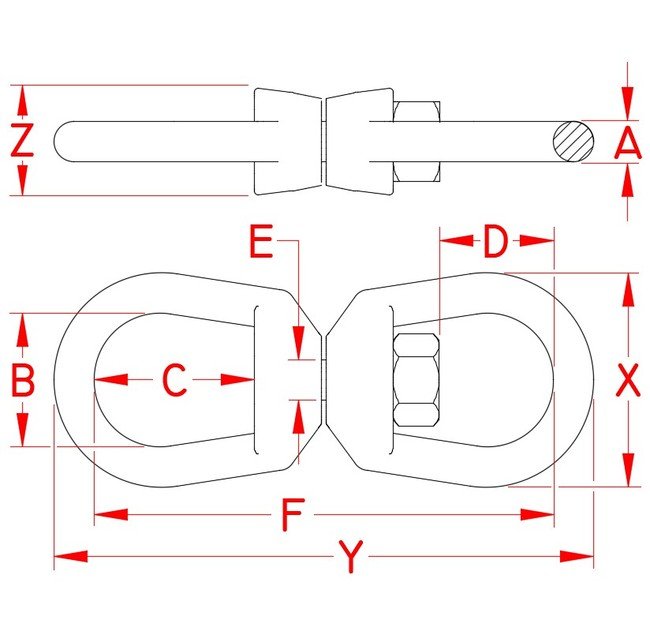

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

1.75 in

Specifications Dimension C

2.38 in

Specifications Dimension D

1.73 in

Specifications Dimension E

0.75 in

Specifications Dimension F

6.55 in

Specifications Dimension X

3.00 in

Specifications Dimension Y

7.73 in

Specifications Dimension Z

1.41 in

Specifications Fabrication Type

Drop Forged

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII

Specifications Suncor Exclusive

Yes

Specifications Weight

2.42 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
