Stainless Steel FCQH Hinged-Top Floor Scale
Stainless Steel FCQH Hinged-Top Floor Scale
SKU:FLO-577d7e
Stainless Steel FCQH Hinged-Top Floor Scale for accurate industrial weighing.
Regular price
$2,500.00
Regular price
Sale price
$2,500.00
Unit price
per
Initiate Order
Stainless Steel FCQH Hinged-Top Floor Scale
$2,500.00
Quantity: 1
Claim Your Seller Account
Stainless Steel FCQH Hinged-Top Floor Scale
$2,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

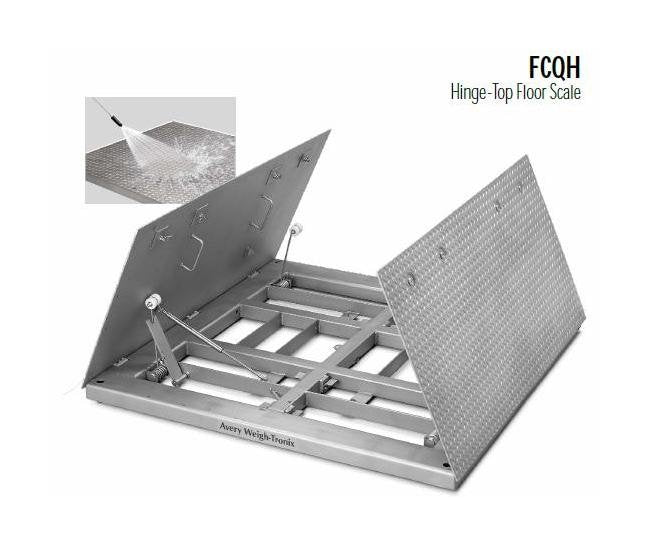

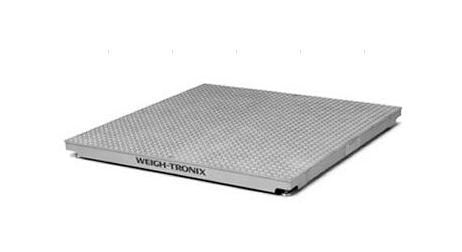

The Stainless Steel FCQH Hinged-Top Floor Scale by Avery Weigh-Tronix offers robust construction with stainless steel components, including hermetically sealed Weigh Bars® for accurate readings. Featuring a remote junction box and smooth top option, this Legal-for-Trade scale ensures precise measurements. Customizable with various ramps and accessories, this scale is ideal for industrial settings requiring high-capacity weighing solutions.
Product Specifications
Options Options
[28209-0026] - Bolt down floor plate, stainless steel (5,000 lb) | [28212-0013] - Straight ramp attachment bracket, stainless steel (5,000 lb) | [28213-0020] - Bolt down floor plate, stainless steel (10,000 lb) | [28216-0019] - Straight ramp attachment bracket, stainless steel (10,000 lb) | Extra interface cable
Specifications Capacity
5,000 to 10,000 lb | 2,500 to 5,000 kg
Specifications Height
4.06 in | 10.3 cm
Specifications Length
60 in
Specifications Model Number
FCQH6048-10
Specifications Notes

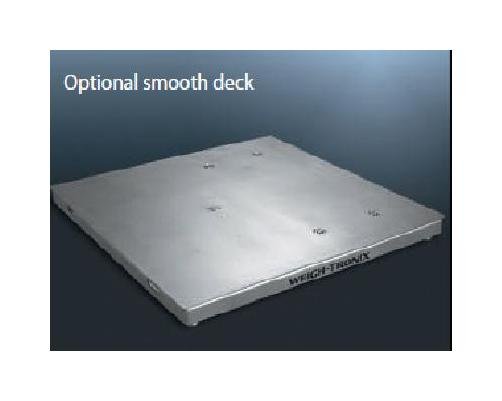

10,000 lb decks may be legally installed as a 5,000 lb capacity scale with 1 lb increments. When used as a 5,000 lb scale, 10,000 ramps, pit frames and options are required.Scale with smooth top available on request (use tread list price for reference)
Specifications Ramps
28208-0019, 48" Ramp, 10000 lb Capacity | 28208-0027, 60" Ramp, 10000 lb Capacity | 28208-0035, 72" Ramp, 10000 lb Capacity
Specifications Shipping Weight
615 lb | 280 kg
Specifications Width
48 in
