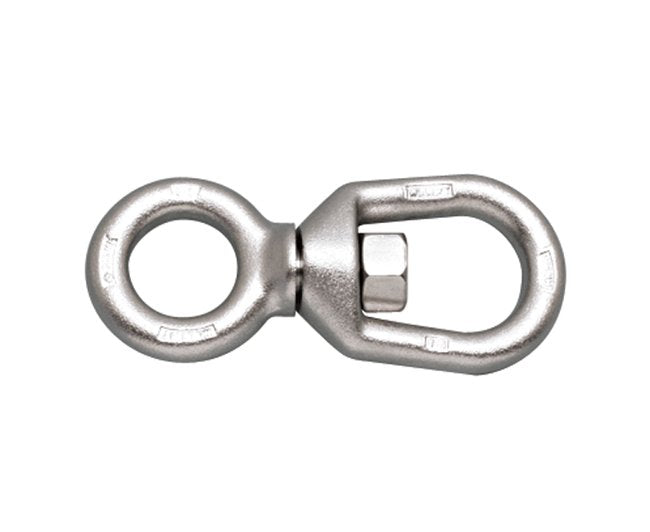

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

SKU:STA-27f932

Heavy-duty Stainless Steel Fed. Spec. Chain Swivel - Prevents chain twists, supports up to 4,400 lb. Compliant with RR-C-271F standards.

Regular price $42.99
Regular price Sale price $42.99
Sale

Initiate Order

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

$42.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

Stainless Steel Fed. Spec. Chain Swivel 5/8 Inch

$42.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Fed. Spec. Chain Swivel is a reliable solution for lifting and rigging tasks, designed to prevent unwanted twists in chains. Crafted from grade 316 stainless steel, it ensures exceptional corrosion resistance and durability. With a working load limit of 4,400 lb, this swivel features an extra-large eye opening for accommodating oversized chain, making it ideal for heavy-duty applications. Compliant with Federal Specification RR-C-271F Type VII, Class 1 standards (except 316 stainless steel), this positioning device is essential for stress relief during taut pulls.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

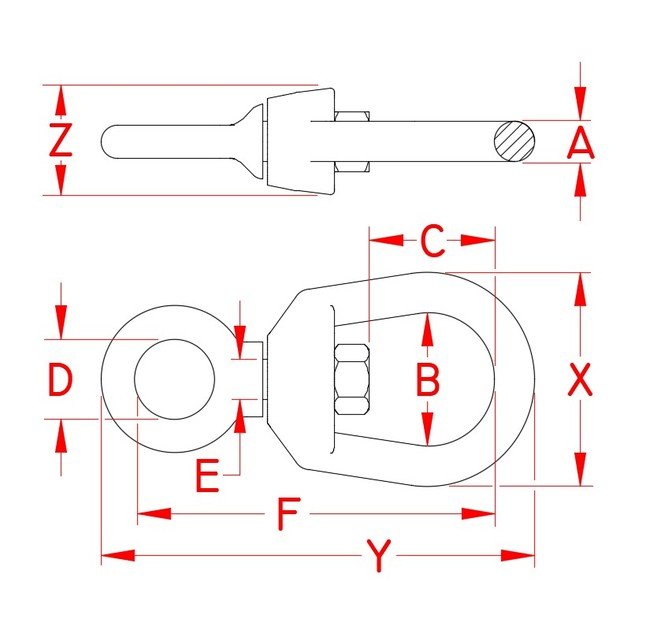

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.45 in
Specifications Dimension D
1.25 in
Specifications Dimension E
0.63 in
Specifications Dimension F
4.68 in
Specifications Dimension X
2.50 in
Specifications Dimension Y
5.68 in
Specifications Dimension Z
0.96 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
1.15 lb
Specifications Working Load Limit Wll
4,400 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
