Stainless Steel Fed. Spec. Jaw & Eye Swivel - 316 Grade

Name: Stainless Steel Fed. Spec. Jaw & Eye Swivel - 316 Grade
Brand: Suncor Stainless, Inc.
SKU: STA-875b41
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-875b41

Premium Stainless Steel Swivel for lifting, rigging, and positioning. Corrosion-resistant, supports up to 5,200 lbs. Complies with Federal Spec RR-C-271F.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your lifting and rigging operations with our Stainless Steel Fed. Spec. Jaw & Eye Swivel. Made from high-quality grade 316 stainless steel, this swivel offers exceptional corrosion resistance and durability, supporting loads up to 5,200 lbs. Perfect for situations where twists in chain, wire rope, or cordage are unwanted, it comes in sizes ranging from 3/16" to 5/8". Ideal for frequent attaching and detaching needs, it complies with Federal Specification RR-C-271F Type VII, Class 3 standards (except 316 stainless steel), ensuring reliability and safety in your operations.

Product Specifications

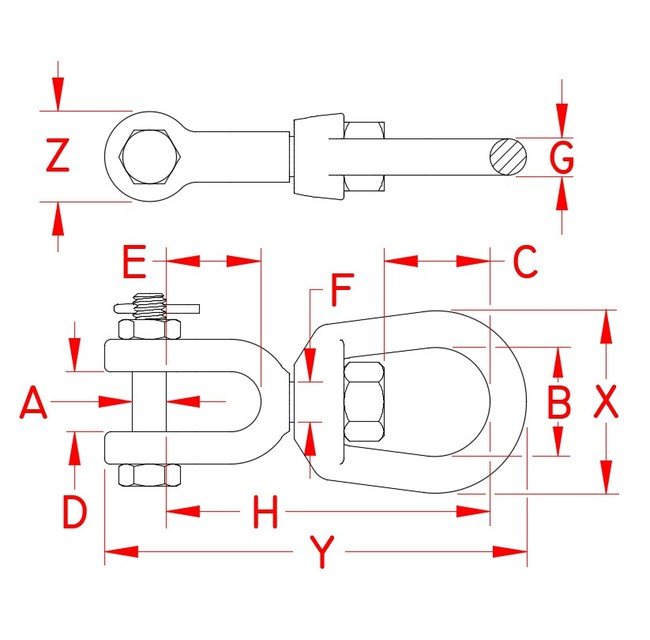

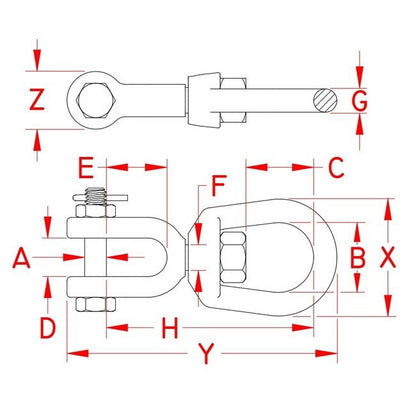

Specifications Dimension A

3/8 in

Specifications Dimension B

1.25 in

Specifications Dimension C

1.06 in

Specifications Dimension D

0.63 in

Specifications Dimension E

1.07 in

Specifications Dimension F

0.50 in

Specifications Dimension G

0.38 in

Specifications Dimension H

3.63 in

Specifications Dimension X

2.34 in

Specifications Dimension Y

4.70 in

Specifications Dimension Z

1.03 in

Specifications Fabrication Type

Drop Forged

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII

Specifications Suncor Exclusive

Yes

Specifications Weight

0.76 lb

Specifications Working Load Limit Wll

3,400 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
