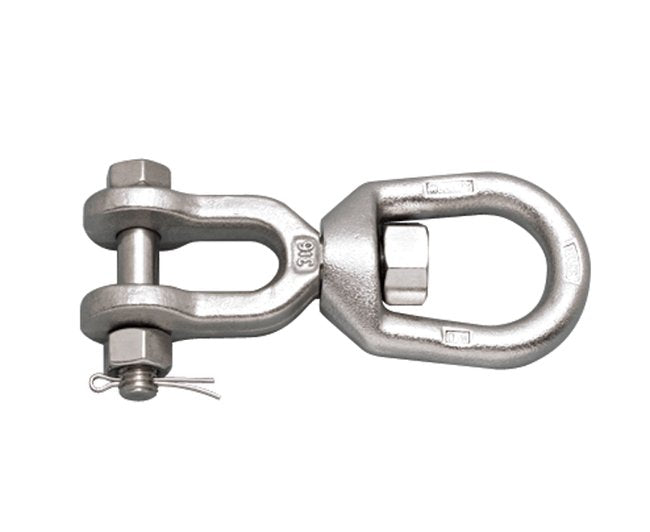

Stainless Steel Federal Spec. Jaw & Eye Swivel

Stainless Steel Federal Spec. Jaw & Eye Swivel

SKU:STA-29ddc2

Heavy-duty Stainless Steel Swivel - Federal Spec. RR-C-271F Type VII, Class 3. 4,400 lb WLL, sizes 3/16"-5/8". Secure, corrosion-resistant solution for lifting tasks.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Stainless Steel Federal Spec. Jaw & Eye Swivel

Stainless Steel Federal Spec. Jaw & Eye Swivel

$39.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Federal Spec. Jaw & Eye Swivel

Stainless Steel Federal Spec. Jaw & Eye Swivel

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Designed for lifting and rigging tasks with zero twists, this Swivel meets Federal Specification: RR-C-271F Type VII, Class 3 standards. Crafted from grade 316 stainless steel for superior corrosion resistance and durability. With a working load limit of 4,400 lbs, sizes ranging from 3/16" to 5/8", and precise drop-forged construction, it ensures secure attachment and detachment processes. Ideal for institutional applications requiring strength, reliability, and compliance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

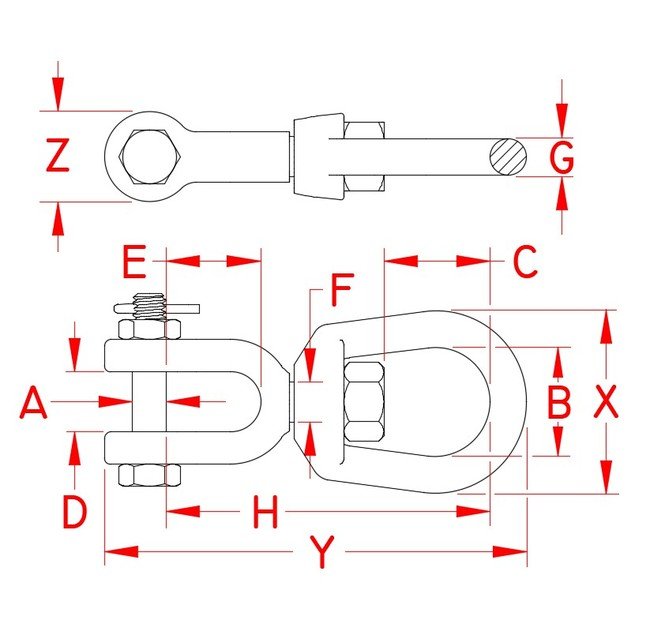

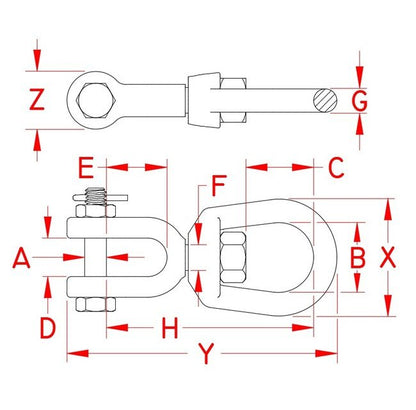

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.45 in
Specifications Dimension D
0.75 in
Specifications Dimension E
1.42 in
Specifications Dimension F
0.63 in
Specifications Dimension G
0.50 in
Specifications Dimension H
4.59 in
Specifications Dimension X
2.88 in
Specifications Dimension Y
5.97 in
Specifications Dimension Z
1.26 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
1.42 lb
Specifications Working Load Limit Wll
4,400 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
