Stainless Steel Federal Specification Eye & Eye Swivel Connector

Name: Stainless Steel Federal Specification Eye & Eye Swivel Connector
Brand: Suncor Stainless, Inc.
SKU: STA-8142c7
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-8142c7

Premium stainless steel swivel connector for secure, stress-free chain and rope connections. Compliant with Fed. Spec. RR-C-271F.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

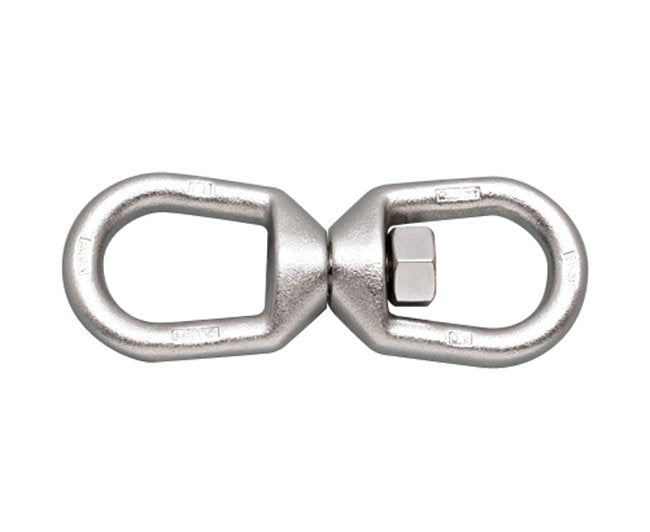

The Stainless Steel Federal Specification Eye & Eye Swivel Connector is designed for connecting chains, wire ropes, or fibrous ropes, reducing twisting stress during taut pulls. Crafted from grade 316 stainless steel, this swivel offers exceptional corrosion resistance and durability, supporting loads up to 5,200 lbs. With an extra-large eye opening for handling oversized chains and ropes, it complies with Federal Specification RR-C-271F Type VII, Class 2 standards (316 stainless steel excluded), ensuring reliability and safety in various applications.

Product Specifications

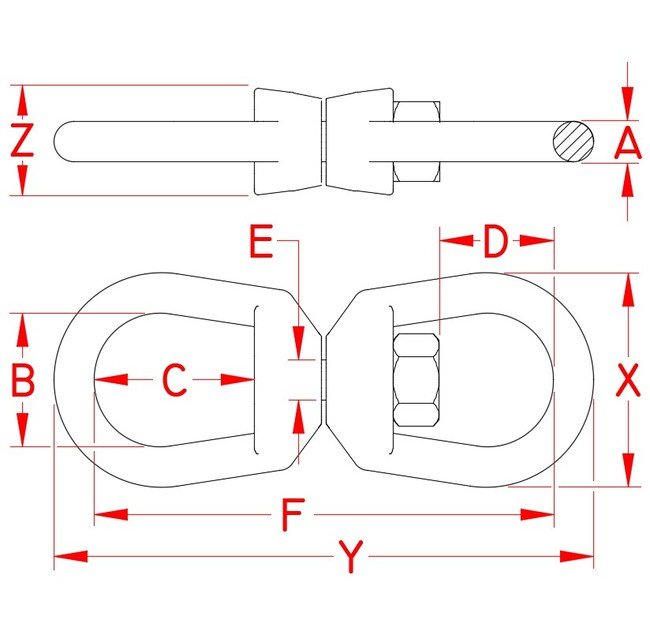

Specifications Dimension A

3/8 in

Specifications Dimension B

1.25 in

Specifications Dimension C

1.50 in

Specifications Dimension D

1.06 in

Specifications Dimension E

0.50 in

Specifications Dimension F

4.29 in

Specifications Dimension X

2.00 in

Specifications Dimension Y

5.00 in

Specifications Dimension Z

0.94 in

Specifications Fabrication Type

Drop Forged

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII

Specifications Suncor Exclusive

Yes

Specifications Weight

0.7 lb

Specifications Working Load Limit Wll

2,600 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Stainless Steel Federal Specification Eye & Eye Swivel Connector
