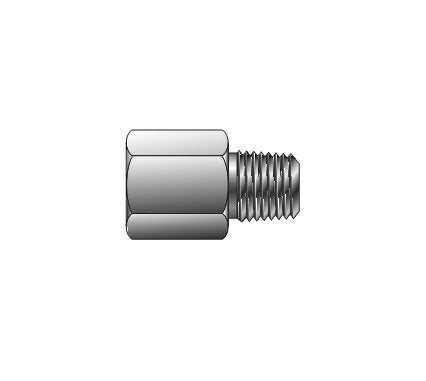

Stainless Steel Female BSP to Male NPT Adapter
Stainless Steel Female BSP to Male NPT Adapter
SKU:FIT-84b571
Premium Stainless Steel Adapter for Interconnecting BSP and NPT Components Effectively. High Pressure Rating. Reliable Quality.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Female BSP to Male NPT Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Female BSP to Male NPT Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Female BSP to Male NPT Adapter by Parker is a premium-quality ISO conversion fitting that ensures seamless connections between components with NPT and ISO thread configurations. Designed to stringent standards, this adapter features FBSPT x MNPT connection type, withstands high pressures up to 4600 psi, and is meticulously crafted from stainless steel or brass. Ideal for facilitating secure and reliable connections in diverse applications, this adapter boasts optimal thread forms for leak-free joints, guaranteeing outstanding performance and durability.
Product Specifications

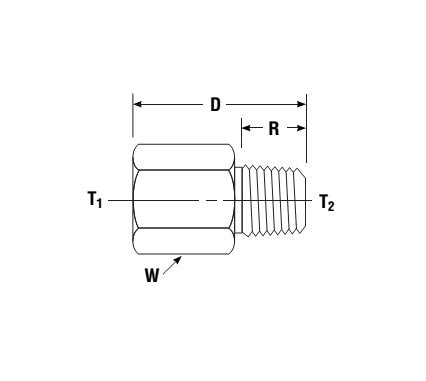

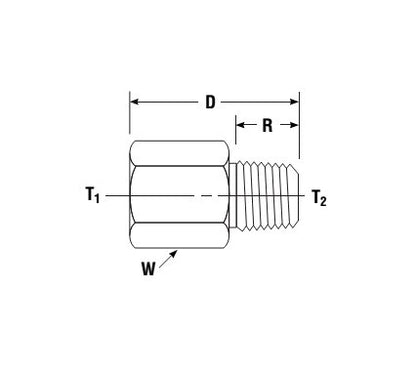

Dimensions Bspt Thread T1
1/2-14
Dimensions Connection Type
FBSPT x MNPT
Dimensions D
1.94 in
Dimensions Npt Thread T2
1/2-14
Dimensions R
.75 in
Dimensions Working Pressure Brass
2400 psi | 160 bar
Dimensions Working Pressure Stainless Steel
4600 psi | 320 bar
Dimensions W Hex
1 1/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
