Stainless Steel Female Non Return Valve - 22x1.5 M-Thread, 400 bar

Name: Stainless Steel Female Non Return Valve - 22x1.5 M-Thread, 400 bar
Brand: World Wide Metric, Inc.
SKU: FIT-ae4c85
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-ae4c85

High-quality Stainless Steel Non Return Valve for hydraulic systems - 400 bar, M-Thread 22x1.5

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

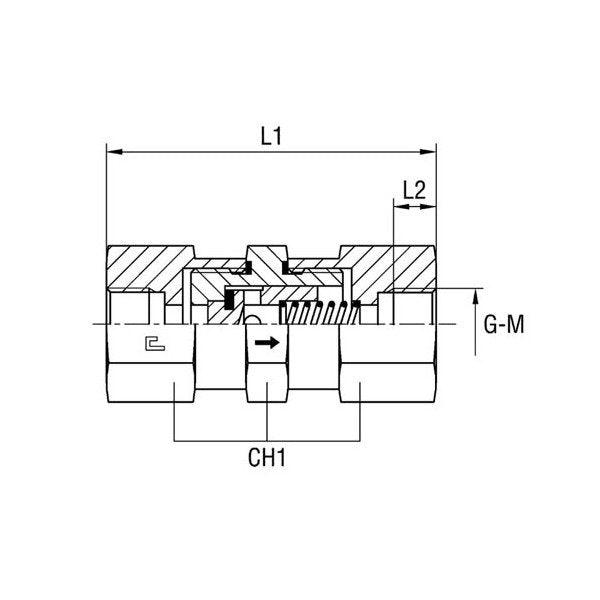

The Stainless Steel Female Non Return Valve features heavy-duty construction suitable for hydraulic systems with a nominal operating pressure of 400 bar. With precise dimensions including 22x1.5 M-Thread, 103.0 mm L1, and 16.5 mm L2, this valve ensures reliable performance. Crafted from high-grade stainless steel, it offers durability and resistance to corrosion, making it ideal for industrial applications.

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications L1

103.0 mm

Specifications L2

16.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Stainless Steel Female Non Return Valve - 22x1.5 M-Thread, 400 bar
