Stainless Steel Female NPT to Male BSP Taper Adapter - ISO Conversion Fitting
Stainless Steel Female NPT to Male BSP Taper Adapter - ISO Conversion Fitting
SKU:FIT-132445
High-quality Stainless Steel Female NPT to Male BSP Taper Adapter for reliable NPT-ISO thread connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Female NPT to Male BSP Taper Adapter - ISO Conversion Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Female NPT to Male BSP Taper Adapter - ISO Conversion Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Female NPT to Male BSP Taper Adapter by Parker is a high-quality ISO conversion fitting designed for seamless connections between components using NPT and ISO thread configurations. Engineered to meet stringent quality standards, this adapter enables the connection of male NPT and female BSPT threaded components with precision and reliability. Crafted from durable stainless steel, it offers robust performance and is suitable for applications requiring pressure tight joints. With working pressure ratings of up to 6100 psi, this adapter ensures efficient and secure connections in demanding industrial environments.
Product Specifications

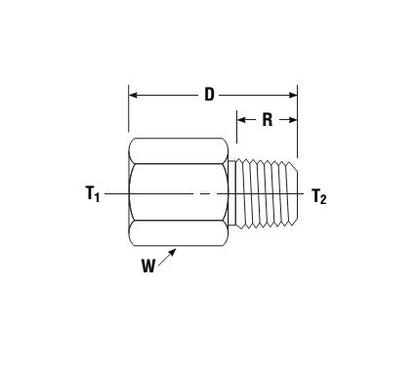

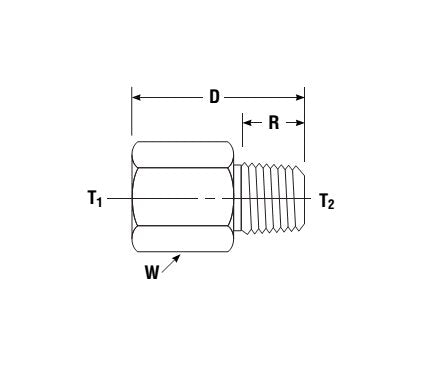

Dimensions Bspt Thread T2
1/8-28
Dimensions Connection Type
FNPT to BSPT
Dimensions D
1.09 in
Dimensions Npt Thread T1
1/8-27
Dimensions R
.38 in
Dimensions Working Pressure Brass
3200 psi | 220 bar
Dimensions Working Pressure Stainless Steel
6100 psi | 420 bar
Dimensions W Hex
9/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
