Stainless Steel Female Tee Needle Valve Thread NPT 1/8 for Hydraulic Systems
Stainless Steel Female Tee Needle Valve Thread NPT 1/8 for Hydraulic Systems
SKU:VAL-add13a
Premium Stainless Steel Female Tee Needle Valve Thread NPT for hydraulic systems, durable and precise.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Female Tee Needle Valve Thread NPT 1/8 for Hydraulic Systems
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Female Tee Needle Valve Thread NPT 1/8 for Hydraulic Systems
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

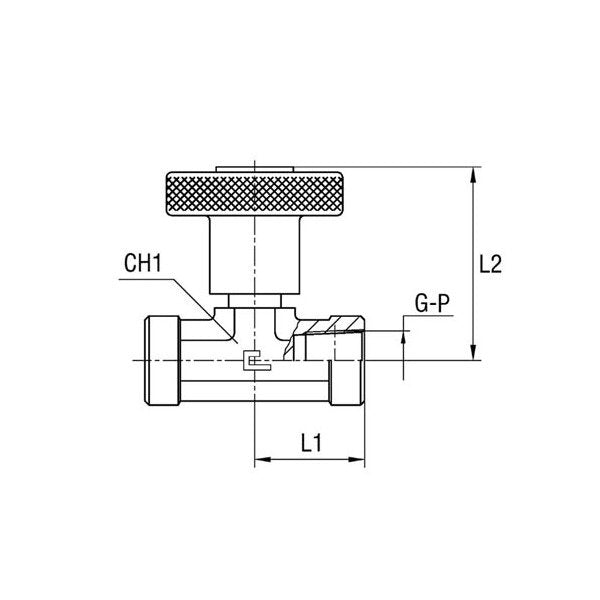

The Stainless Steel Female Tee Needle Valve Thread NPT is designed for hydraulic systems, offering Extra Light Duty, Heavy Duty, and Light Duty options to meet varying pressure needs. With a Nominal Operating Pressure of 350 bar, precise measurements like L1: 27.0mm, L2: 50.0mm, and CH1: 19.0mm ensure seamless integration. Crafted from high-quality Stainless Steel, this valve guarantees durability and reliability in critical applications while adhering to industry compliance standards.
Product Specifications
Specifications Ch1
19.0 mm
Specifications L1
27.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications P Thread Size
1/8
