Stainless Steel Female x Female Mini Needle Valve
Stainless Steel Female x Female Mini Needle Valve
SKU:MIN-603f41
High-pressure Stainless Steel Mini Needle Valve designed for precise flow control in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Female x Female Mini Needle Valve
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Female x Female Mini Needle Valve
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

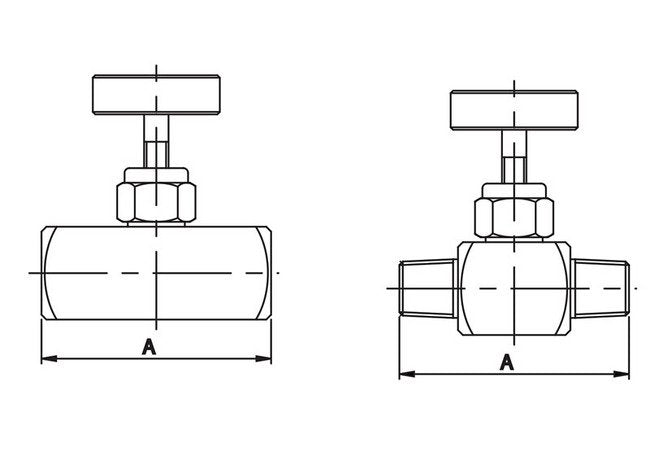

The Stainless Steel Female x Female Round-Handle Mini Needle Valve is a precision-engineered component designed for efficient flow control in high-pressure systems. Featuring a 6000 psi pressure rating and constructed from 316 Stainless Steel material, this valve ensures durability and reliable performance in demanding industrial applications. The PTFE stem packing with Fluorocarbon (FKM) O-Ring, POM/Acetal soft seat, and 304 Stainless round handle offer enhanced sealing and smooth operation. With dimensions meeting industry standards (Dimension A: 1.85 in, Dimension B: 0.47 in, Dimension C: 1.97 in, Dimension D: 1.02 in, Dimension E: 0.75 in), this valve is ideal for precise control in systems up to 4000 psi, making it a top choice for institutional and government procurement needs.
Product Specifications
Technical Specs Body Material
316 Stainless Steel
Technical Specs Bonnet Material
316 Stainless
Technical Specs Dimension A
1.85 in
Technical Specs Dimension B
0.47 in
Technical Specs Dimension C
1.97 in
Technical Specs Dimension D
1.02 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
304 Stainless
Technical Specs Material
Stainless Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
316 Stainless
Technical Specs Thread Type
Female x Female
