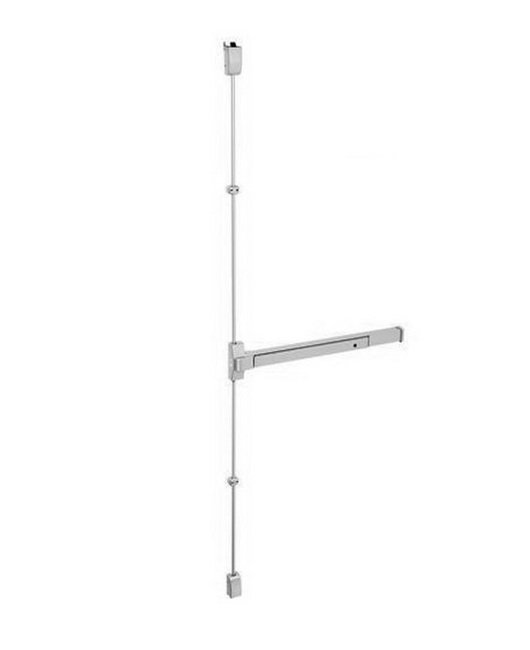

Stainless Steel Finish Surface Vertical Rod Exit Device by Strybuc

Name: Stainless Steel Finish Surface Vertical Rod Exit Device by Strybuc
Brand: Strybuc Industries
SKU: COM-d1ecf8
Price: 249.99 USD
Availability: OutOfStock

SKU:COM-d1ecf8

Enhance door security with the Stainless Steel Finish Surface Vertical Rod Exit Device by Strybuc, meeting ANSI Grade 2 and UL Listed standards.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your commercial door security with the durable Stainless Steel Finish Surface Vertical Rod Exit Device by Strybuc. This panic device is reversible for right or left-hand doors, making it versatile for new constructions or renovations. With top Pullman type latch and extruded anodized aluminum push bar, this device is Fire Rated for 3 hours, meeting ANSI A156.3 Grade 2 and UL Listed standards.

Product Specifications

Accessories Accessories

Item# 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# 19-604ALItem Name - Entry LeverFinish - AluminumItem# 19-604BZItem Name - Entry LeverFinish - BronzeItem# 19-753Item Name - Dummy Handle SetFinish - AluminumItem# 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# 9-618ALItem Name - Passage LeverFinish - AluminumItem# 19-751Item Name - Exit Only PlateFinish - AluminumItem# 19-1034ALItem Name - Entry BallFinish - AluminumItem# 19-568Item Name - Rim CylinderFinish - AluminumItem# 19-568BZItem Name - Rim CylinderFinish - BronzeItem# 19-749Item Name - Pull TrimFinish - AluminumItem# 19-750Item Name - Dummy Pull TrimFinish - Aluminum

Features Features

Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Top Pullman type, Bottom bolt assemblyDoor Height: 7' standardBackset: 2-3/4" on 4-1/2" minimum stile width -if less than 4-1/2" backset becomes half of the exposed stile widthStrike: Top-surface mounted, Bottom-flat mortise or into threshold, vertical/rim application use DBLST double dr. strikeProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/2" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsCylinder not included.Dogging: 1/2 turn hex key

Specifications Finish

Stainless Steel

Specifications Industry Standards

American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed

Stainless Steel Finish Surface Vertical Rod Exit Device by Strybuc
