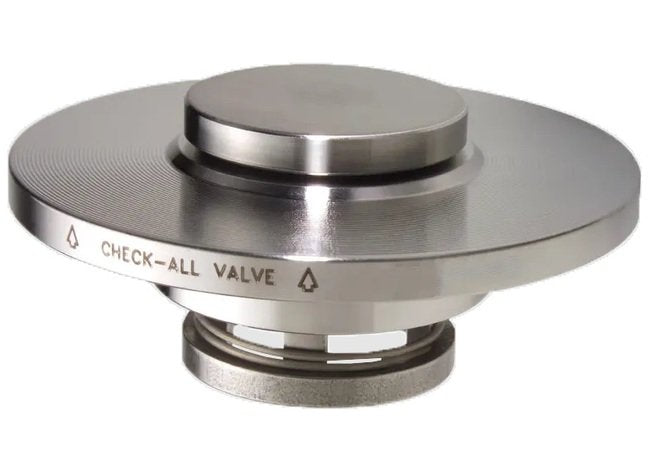

• Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure - Image 1
  • Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure - Image 2

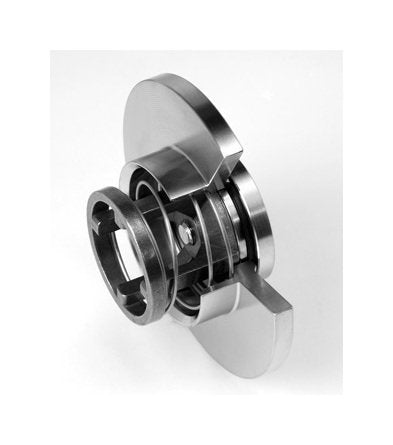

  • Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure - Image 3

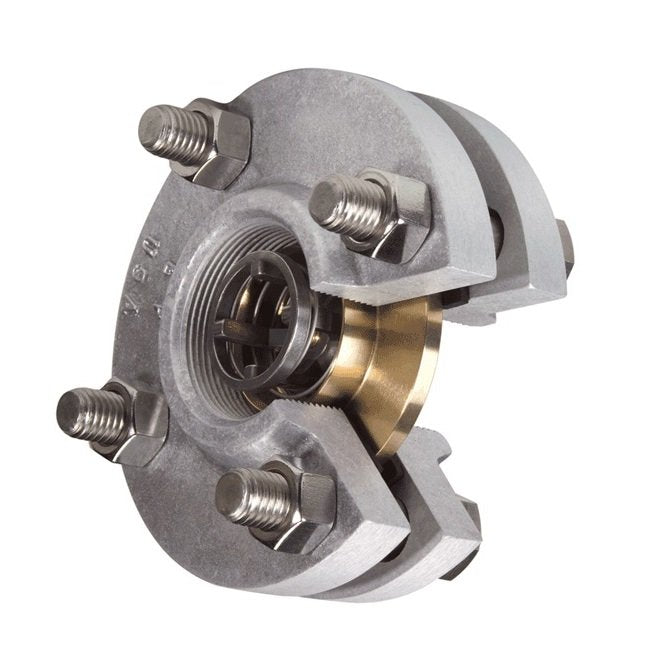

  • Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure - Image 4
1 4
Check-All Valve Mfg. Co. →

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

F1F-160c88

Premium stainless steel F1 Style Flange Insert Check Valve with 3" Nominal Pipe Size and 0.500 psi Cracking Pressure.

$299.99
$299.99
Sale

Initiate Order

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

$299.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

Stainless Steel Flange Insert Check Valve - F1 Style, 3" Nominal Pipe Size, 0.500 psi Cracking Pressure

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Stainless Steel Flange Insert Check Valve in F1 style is a premium solution for flanged systems, ensuring efficient installation and reliable performance. Designed with 316 stainless steel body material and 17-7PH stainless steel spring material, it offers exceptional durability and corrosion resistance. With a standard cracking pressure of 0.500 psi and various seat material options, this valve meets stringent industry standards, including ISO 9001 certification, CE PED 2014/68/EU compliance, and B16.34 certification. Ideal for low pressure relief or vacuum breaker applications, this valve guarantees optimal functionality and longevity in institutional settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information

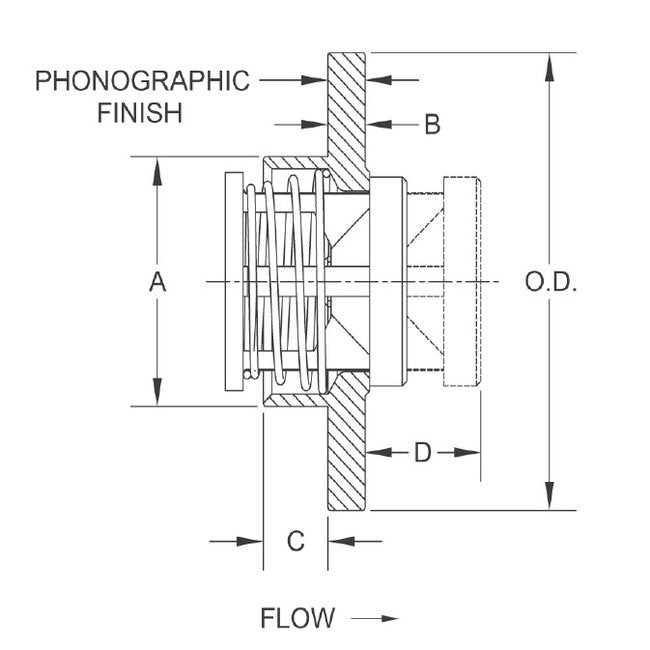

Flange Insert valves are designed to fit between two mating ANSI flanges. The "Spring Housing", designated by the "A" dimension (Check "A" dimension for clearance with pipe ID. Generally "A" dimension is designed for use in schedule 40 pipe for class 150 & 300 valves (F1). Order class 600 (F6) valves for schedule 80 pipe.), is designed to be inserted into the upstream pipe, thereby helping to center it in the pipe. Therefore, there must be clearance between the spring housing and the pipe or flange. Generally speaking, the FIV Class 150 and 300 valves (F1) are designed for standard schedule pipe with Class 150 or 300 flanges, and the FIV Class 600 (F6) valves are designed for schedule 80 pipe with Class 150, 300 or 600 flanges.The Flange Insert valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings. Many valves in this series can be supplied with B16.34 certification.
Note
Consult the factory for an optional Flag Tag which indicates that a check valve is present in the line.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Polytetrafluoroethylene (PTFE) = TF | Polyvinyl Chloride (PVC) = PV | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
3 in
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
M
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
F1
