Stainless Steel Flat Faced Slip-On Flanges DIN PN16 - 200mm (8")

Name: Stainless Steel Flat Faced Slip-On Flanges DIN PN16 - 200mm (8")
Brand: World Wide Metric, Inc.
SKU: FLA-f229e3
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-f229e3

Enhance your piping system with precision-crafted Stainless Steel Slip-On Flanges. Secure, durable, and compliant with DIN standards.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your piping system with our Stainless Steel Flat Faced Slip-On Flanges DIN PN16. Crafted from high-quality stainless steel, these flanges ensure a secure and durable connection. With precise dimensions meeting DIN standards, including a 219.1mm inner diameter, 340mm outer diameter, and 295mm bolt circle diameter, they offer reliable performance under PN 16 pressure. The flanges come with 12 bolts for added stability, weighing 10.90 kg. Trust in our product for superior quality and compliance with industry standards.

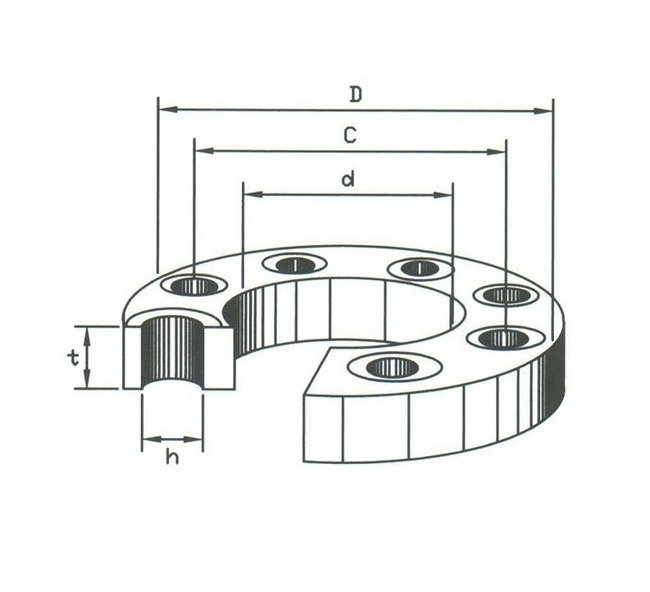

Product Specifications

Specifications C

295 mm

Specifications D

340 mm

Specifications H

22 mm

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

200 - 8"

Specifications T

26 mm

Specifications Weight

10.90 kg
