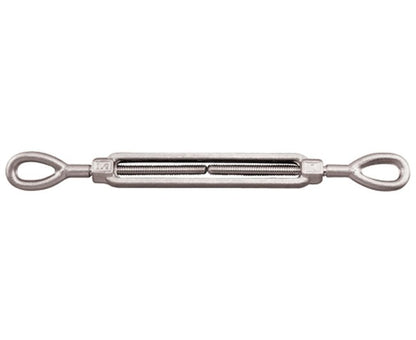

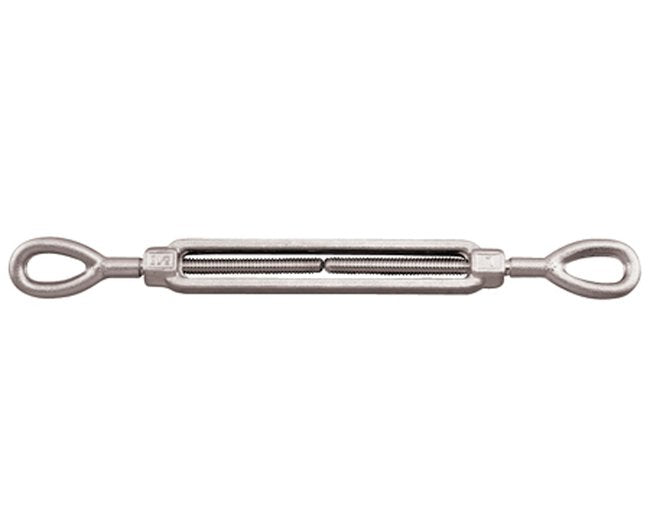

Stainless Steel Forged Eye and Eye Turnbuckle
Stainless Steel Forged Eye and Eye Turnbuckle
SKU:STA-24a567
Durable stainless steel turnbuckle meeting ASTM standards for marine and industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Forged Eye and Eye Turnbuckle
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Eye and Eye Turnbuckle
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Built for durability and corrosion resistance, the Stainless Steel Forged Eye and Eye Turnbuckle is a versatile solution for marine and industrial applications. Made from grade 316 stainless steel, it meets ASTM specification F1145-05 (2011) Type 1, Class D standards, ensuring reliability and safety for your projects.

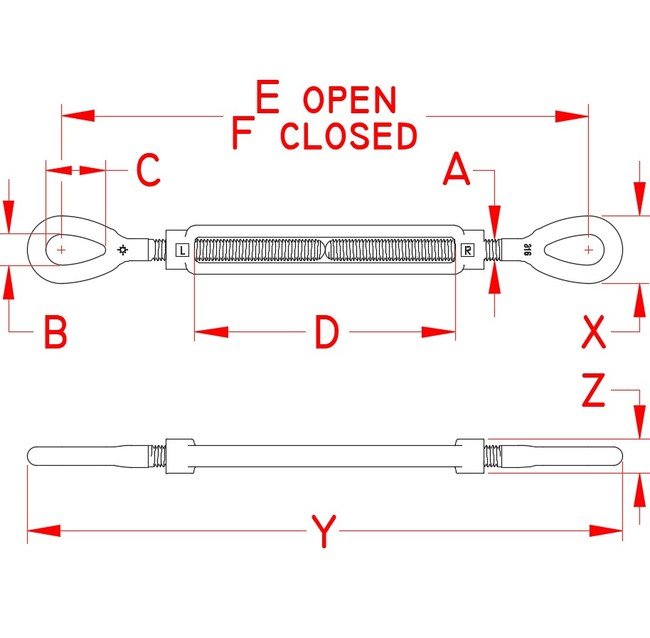

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.41 in
Specifications Dimension C
0.90 in
Specifications Dimension D
4.50 in
Specifications Dimension E
12.30 in
Specifications Dimension F
9.25 in
Specifications Dimension X
0.95 in
Specifications Dimension Y
9.96 in
Specifications Dimension Z
0.57 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.52 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
