Stainless Steel Forged Eye and Eye Turnbuckle
Stainless Steel Forged Eye and Eye Turnbuckle
SKU:STA-9fae80
Premium Stainless Steel Turnbuckle for marine & industrial use. Sizes 1/4" to 1-1/4". Meets ASTM F1145-05 (2011) Type 1, Class D standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Forged Eye and Eye Turnbuckle
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Eye and Eye Turnbuckle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

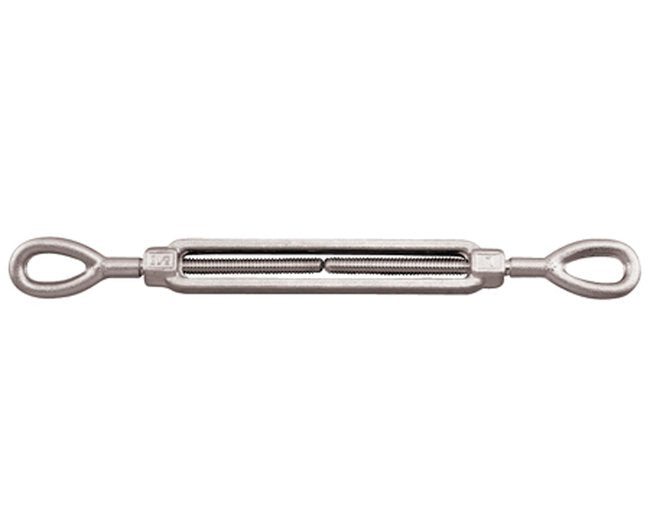

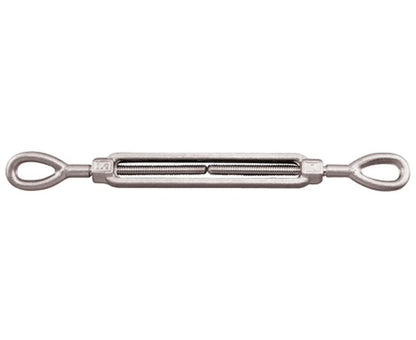

The Stainless Steel Forged Eye and Eye Turnbuckle is a robust solution for marine and industrial applications. Crafted from grade 316 stainless steel, this turnbuckle offers superior corrosion resistance and durability. Ranging from 1/4" to 1-1/4" in size, it meets ASTM specification F1145-05 (2011) Type 1, Class D standards, ensuring reliability and safety for your projects.
Product Specifications

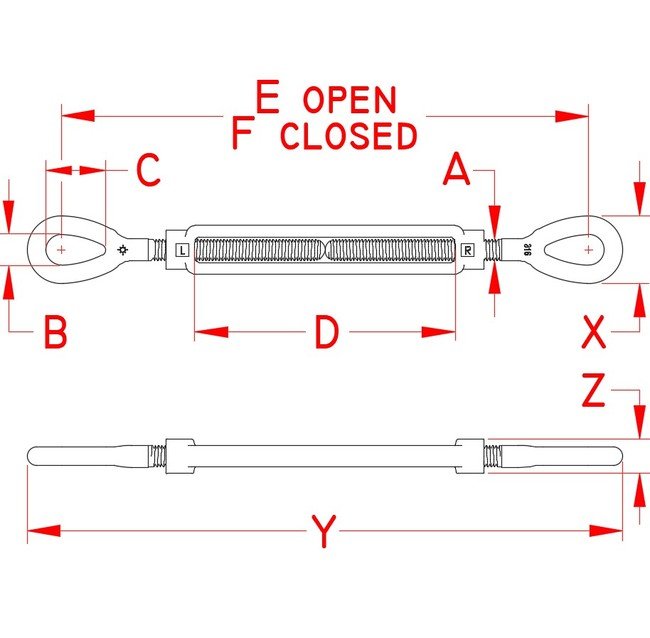

Specifications Dimension A
3/4 in
Specifications Dimension B
1.00 in
Specifications Dimension C
2.02 in
Specifications Dimension D
6.00 in
Specifications Dimension E
20.50 in
Specifications Dimension F
16.25 in
Specifications Dimension X
2.25 in
Specifications Dimension Y
18.00 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
3.91 lb
Specifications Working Load Limit Wll
5,200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
