Stainless Steel Forged Eye & Eye Turnbuckle T316, ASTM F1145-92 Type 1
Stainless Steel Forged Eye & Eye Turnbuckle T316, ASTM F1145-92 Type 1
SKU:WIR-a1b99f
Premium U.S. Type stainless steel turnbuckle meeting ASTM F1145-92 Type 1, Class H standards. WLL: 5,200 lbs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Forged Eye & Eye Turnbuckle T316, ASTM F1145-92 Type 1
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Eye & Eye Turnbuckle T316, ASTM F1145-92 Type 1
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

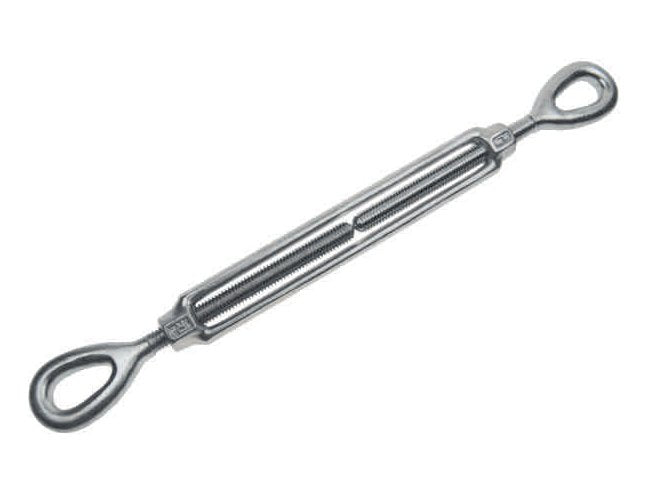

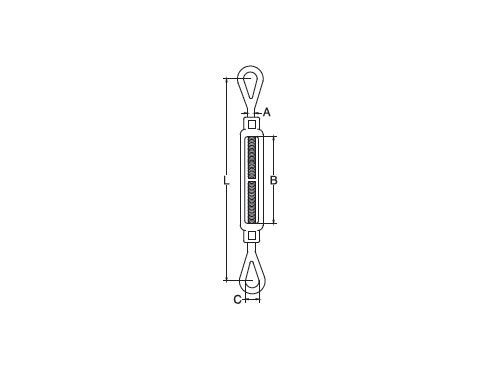

The Forged SS T316 Turnbuckle is a premium U.S. Type hardware designed for durability and reliability. Constructed from high-grade stainless steel, it meets the exacting standards of ASTM Specification F1145-92 Type 1, Class H. With precise dimensions (A: 3/4", B: 6", C: 1", L: 16-1/4") and a Working Load Limit (WLL) of 5,200 lbs, this turnbuckle ensures secure connections in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
3/4"
Specifications B
6"
Specifications C
1"
Specifications L
16-1/4"
Specifications Wll Lbs
5,200
CAGE
0T9L4
NAICS
332510
PSC
4030
