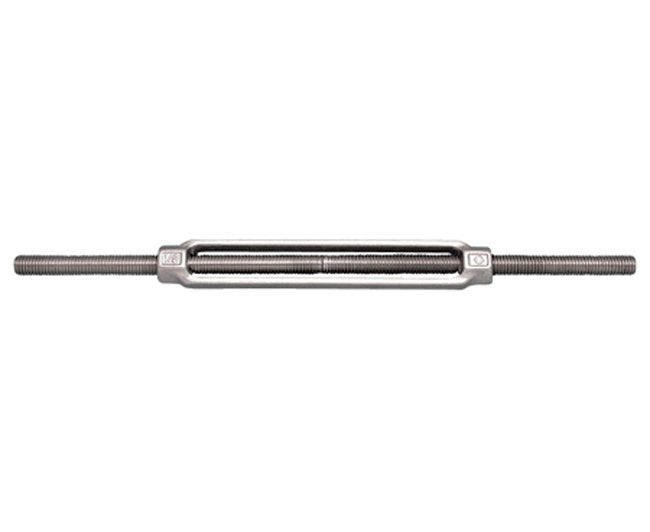

Stainless Steel Forged Full Thread Turnbuckle - ASTM F1145-05 Type 1
Stainless Steel Forged Full Thread Turnbuckle - ASTM F1145-05 Type 1
SKU:STA-93f7c7
Premium stainless steel turnbuckle with 1200 lb WLL, ASTM F1145-05 Type 1 compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Forged Full Thread Turnbuckle - ASTM F1145-05 Type 1
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Full Thread Turnbuckle - ASTM F1145-05 Type 1
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial projects with our Stainless Steel Forged Full Thread Turnbuckle. Crafted from grade 316-NM stainless steel, this turnbuckle offers superior corrosion resistance and durability. With a Working Load Limit of 1200 lb, it meets ASTM F1145-05 Type 1 standards. Suncor exclusive, drop forged, and weighing only 0.65 lb, it's your reliable choice for strength and longevity.

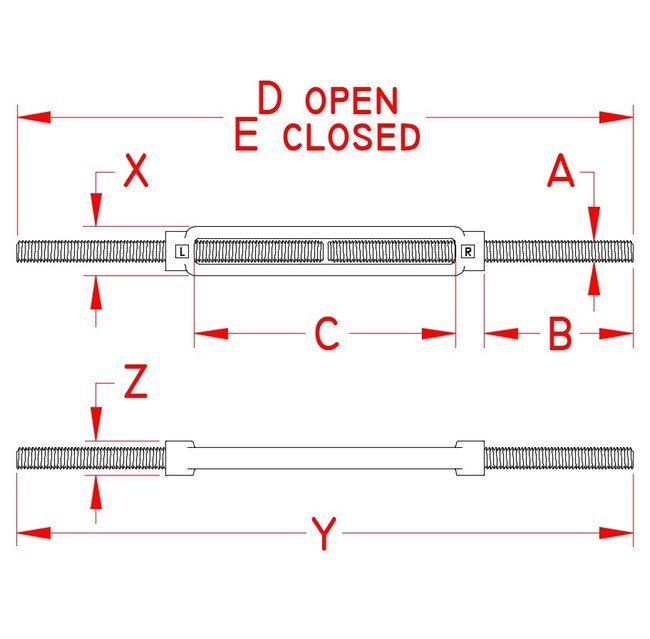

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
2.88 in
Specifications Dimension C
6.00 in
Specifications Dimension D
19.50 in
Specifications Dimension E
13.00 in
Specifications Dimension X
0.96 in
Specifications Dimension Y
13.00 in
Specifications Dimension Z
0.65 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D
Specifications Suncor Exclusive
Yes
Specifications Weight
0.65 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
