Stainless Steel Forged Hook and Eye Turnbuckle

Name: Stainless Steel Forged Hook and Eye Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-0aa2cb
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-0aa2cb

Durable stainless steel turnbuckle meeting ASTM F1145-05 standards with 300 lb WLL. Ideal for marine and industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

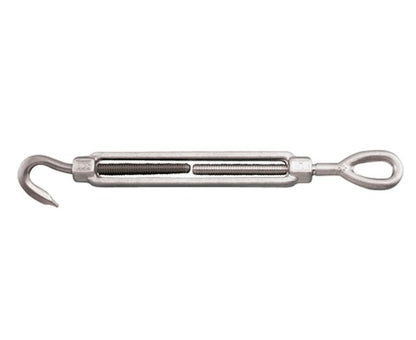

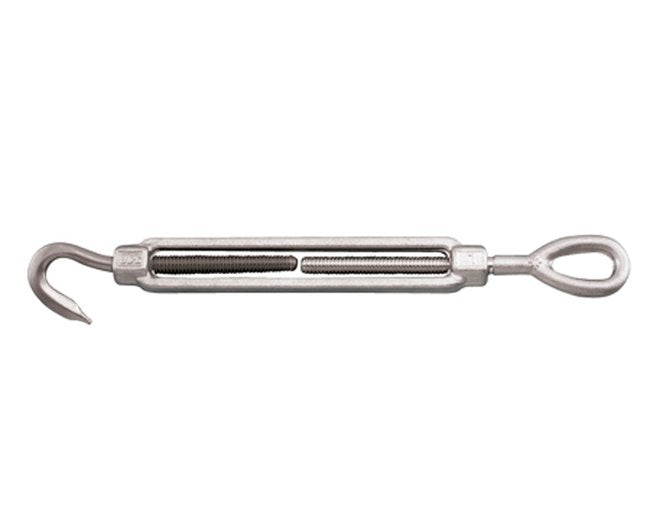

The Stainless Steel Forged Hook and Eye Turnbuckle offers exceptional durability and corrosion resistance, making it ideal for marine and industrial applications. Crafted from grade 316 stainless steel, this turnbuckle meets ASTM specification F1145-05 (2011) Type 1, Class F standards. Available in sizes from 1/4" to 3/4", it provides a reliable working load limit of 300 lb. Suncor-exclusive design ensures top-notch quality and performance for your projects.

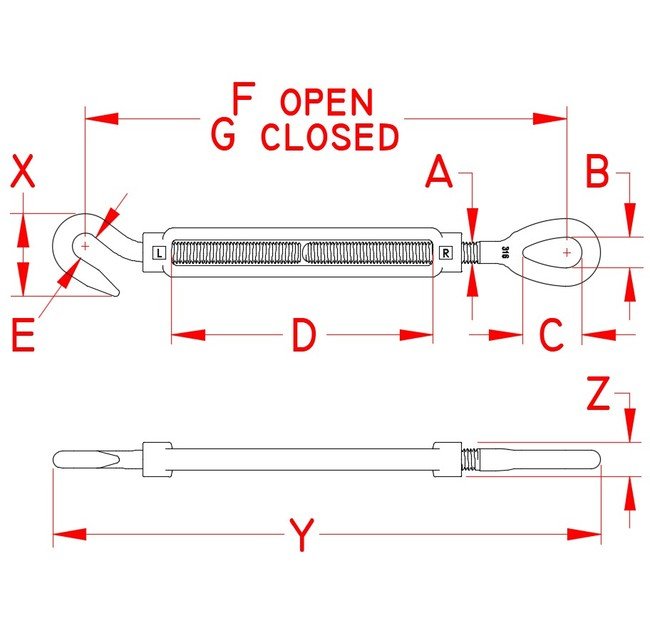

Product Specifications

Specifications Dimension A

1/4 in

Specifications Dimension B

0.33 in

Specifications Dimension C

0.75 in

Specifications Dimension D

4.00 in

Specifications Dimension E

0.39 in

Specifications Dimension F

9.60 in

Specifications Dimension G

7.50 in

Specifications Dimension X

0.95 in

Specifications Dimension Y

7.52 in

Specifications Dimension Z

0.52 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

0.26 lb

Specifications Working Load Limit Wll

300 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
