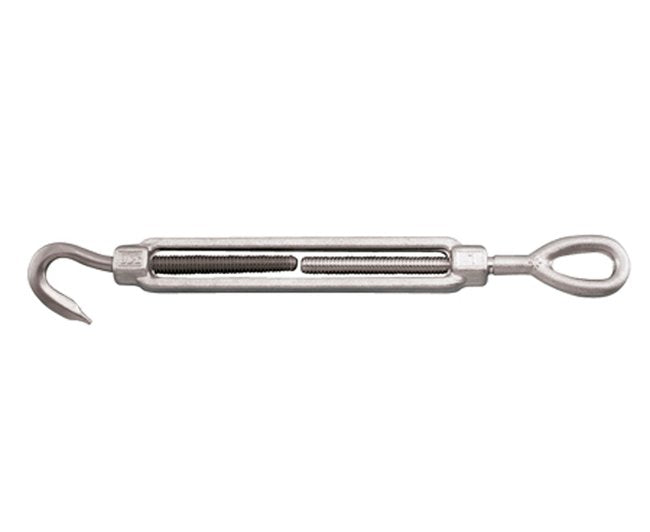

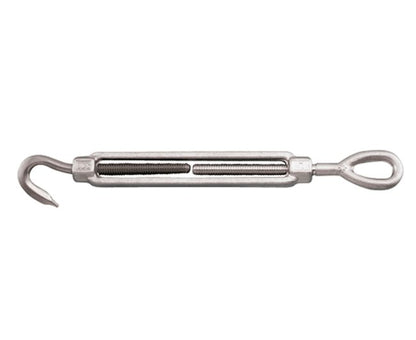

Stainless Steel Forged Hook and Eye Turnbuckle

Name: Stainless Steel Forged Hook and Eye Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-4b02a9
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-4b02a9

Upgrade marine & industrial projects with grade 316 stainless steel turnbuckle. WLL of 750 lb. ASTM F1145-05 (2011) Type 1, Class F. ASME B30.26-2010 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with the Stainless Steel Forged Hook and Eye Turnbuckle. Crafted from grade 316 stainless steel, this turnbuckle offers exceptional corrosion resistance and durability. With a Working Load Limit (WLL) of 750 lb, it meets the stringent dimensions and safety requirements of ASTM specification F1145-05 (2011) Type 1, Class F. Suncor-exclusive, ASME B30.26-2010 compliant, and drop forged for superior quality.

Product Specifications

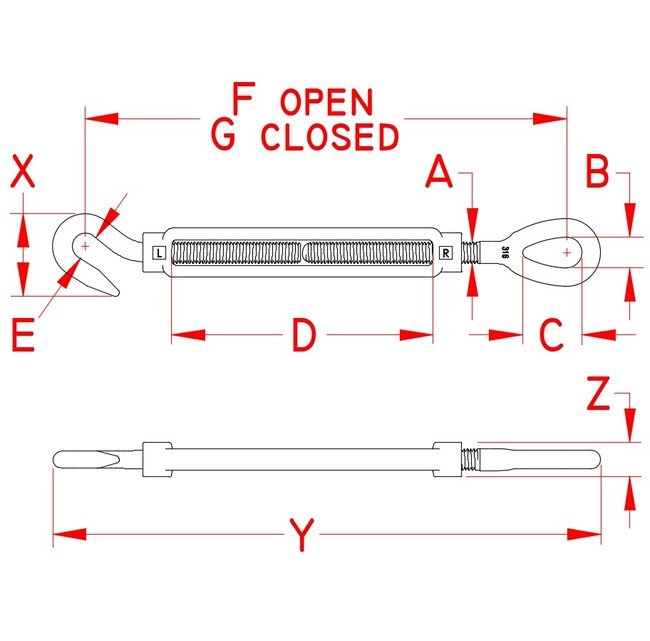

Specifications Dimension A

3/8 in

Specifications Dimension B

0.51 in

Specifications Dimension C

1.07 in

Specifications Dimension D

6.00 in

Specifications Dimension E

0.52 in

Specifications Dimension F

15.50 in

Specifications Dimension G

10.75 in

Specifications Dimension X

1.50 in

Specifications Dimension Y

11.62 in

Specifications Dimension Z

0.66 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

0.73 lb

Specifications Working Load Limit Wll

750 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

Stainless Steel Forged Hook and Eye Turnbuckle
